| Hardware | ||
| Product Type | 86-Inch 4K UHD Interactive Flat Panel | |
| Operating System | Built-in Android System | |
| Android Version | Android 16.0 | |
| Processor (CPU) | Quad-core Cortex-A72 × 4, 2.2GHz + Quad-core Cortex-A53 × 4, 1.8GHz | |
| RAM | 8GB | |
| Internal Storage | 128GB | |
| Display | ||
| Screen Size | 86 Inch | |
| Display Technology | 4K UHD DLED Display | |
| Panel Type | IPS | |
| Resolution | 3840 × 2160 @ 60Hz | |
| Aspect Ratio | 16:9 | |
| Brightness | 400 cd/m² | |
| Contrast Ratio | 1200:1 Static; 15,000:1 Dynamic | |
| Viewing Angle | 178° Horizontal / 178° Vertical | |
| Refresh Rate | 60Hz | |
| Response Time | 5ms | |
| Color Gamut | 72% NTSC, CIE1931 Typ. | |
| Backlight Type | DLED | |
| Surface Treatment | Anti-Glare Glass, 25% Haze, Zero Lamination | |
| Glass Hardness | 9H Pencil Hardness; 7 Mohs | |
| Display Lifespan | 50,000 Hours | |
| Touch Performance | ||
| Touch Technology | Infrared Touch Screen | |
| Touch Points | Up to 50-Point Multi-Touch | |
| Touch Accuracy | ±0.5 mm | |
| Touch Response Time | ≤5ms | |
| Stylus Support | Touch Writing Pen Included | |
| Audio & Camera | ||
| Built-in Speakers | Yes, Built-in Loudspeakers | |
| Speaker Output | 2 × 20W | |
| Connectivity | ||
| Wi-Fi | Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax, 2 × 2 MIMO, 2.4GHz and 5GHz | |
| Bluetooth | Built-in BLE Module, Bluetooth 5.4 | |
| Ethernet (LAN) | 2 × LAN, 1000 Mbps | |
| NFC | Supported, 13.56MHz Card Reader, ISO 14443A / ISO 14443B | |
| Ports & Interfaces | ||
| HDMI Input | HDMI 2.1 TMDS × 3, Front × 1 and Rear × 2 | |
| USB Type-A | USB 3.0 × 2 Front; USB 2.0 × 2 Rear | |
| USB Type-C | Type-C × 1 Front, Supports USB 3.0 and 15W Charging | |
| USB Touch | TOUCH-USB 2.0 × 1 Front; TOUCH-USB 2.0 × 1 Rear | |
| RJ45 | LAN 1000 Mbps × 2 Rear | |
| RS-232 | RS232 × 1 Rear | |
| Audio Output | Audio × 1 Rear | |
| Power & Physical | ||
| Power Supply | 100 to 240 VAC, 50/60Hz | |
| Power Consumption | Average: <210W; Standby: ≤0.5W | |
| VESA Mount | 800 × 600 mm, 4 × M8-25 mm | |
| Product Dimensions | With Wall Attachment: 1957.04 × 1156.5 × 123.0 mm; Without Wall Attachment: 1957.04 × 1156.5 × 95.8 mm | |
| Net Weight | 52.38 ± 0.5 kg | |
| Operating Temperature | 0°C to 40°C | |
| Warranty | ||
| Warranty | 3 Years | |

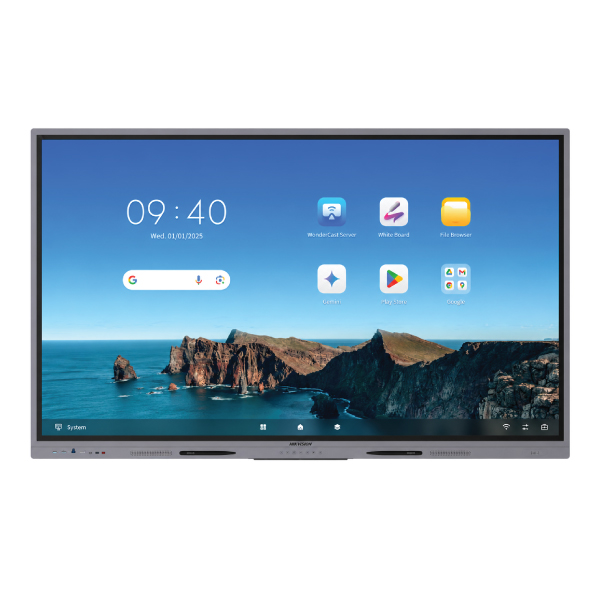

The Hikvision DS-D5A86RB/A3 86-Inch 4K UHD Interactive Flat Panel is a large professional collaboration display for classrooms, lecture halls, training centres, conference rooms and presentation spaces. It combines a digital whiteboard, responsive multi-user touchscreen, EDLA-certified Android platform, integrated audio and flexible connectivity in one streamlined device.
For buyers comparing the Hikvision DS-D5A86RB/A3 price in Bangladesh, this model offers 50-point multi-touch, 8GB RAM, 128GB storage and an expansive 86-inch viewing area. The current price at Touch IT is ৳350,000. Confirm stock, Android revision, installation package and warranty before ordering.
The DS-D5A86RB/A3 brings large-format presentation, interactive writing and content sharing together on one 86-inch screen. Teachers and business teams can display documents, annotate lessons, review detailed plans and run compatible applications without arranging separate projectors, whiteboards and speakers. Its generous display area is particularly useful in large classrooms and boardrooms.
The 3840 × 2160 resolution keeps spreadsheets, diagrams, videos and presentation slides sharp on the large screen. Its DLED IPS panel provides wide 178-degree viewing angles, while 400cd/m² brightness supports clear indoor visibility. Anti-glare glass and zero-lamination construction improve readability and reduce the visible gap between content and touch.
Up to 50 simultaneous touch points allow multiple participants to write, draw or control content together. Published touch response is 5ms or faster, with precision rated at ±0.5mm under stated conditions. Explore other display sizes and configurations in the Interactive Flat Panel category.
An octa-core Cortex-A72 and Cortex-A53 platform, 8GB RAM and 128GB storage support whiteboarding, presentations, multimedia and compatible Android applications. EDLA certification supports an enterprise-ready Google environment, although the supplied Android version may vary by regional revision. Browse more professional displays on the Hikvision Products page.
Wi-Fi 6, Bluetooth 5.4, NFC, HDMI 2.1, USB-A, USB-C, touch USB, audio and RS-232 support laptops and classroom accessories. Dual Gigabit LAN with a built-in network switch can simplify wired deployment. Find complementary presentation and workplace technology under Office Equipment.
Two built-in 20W speakers provide clear audio for lessons, presentations and video playback without separate speakers in many rooms. When desktop applications or Windows-based collaboration tools are required, a compatible OPS computer module can be purchased separately and installed for convenient dual-system operation.
| Product Name | Hikvision 86-Inch 4K UHD Interactive Flat Panel |
|---|---|
| Model | DS-D5A86RB/A3 |
| Display | 86-inch DLED IPS panel |
| Resolution | 3840 × 2160 at 60Hz |
| Brightness | 400cd/m² |
| Viewing Angle | 178° horizontal and 178° vertical |
| Display Surface | Anti-glare glass with zero lamination |
| Touch | Infrared touchscreen, up to 50 touch points |
| Operating System | EDLA-certified Android; revision-dependent |
| Memory | 8GB RAM and 128GB internal storage |
| Processor | Octa-core Cortex-A72 and Cortex-A53 platform |
| Graphics | Mali-G52 MC3 |
| Speakers | 2 × 20W |
| Wireless | Dual-band Wi-Fi 6, Bluetooth 5.4 and NFC |
| Interfaces | HDMI 2.1, USB-A, USB-C, touch USB, audio, RS-232 and TF card |
| Network | Dual Gigabit LAN with built-in network switch |
| VESA Mount | 800 × 600mm |
Verification note: Current regional Hikvision materials identify Android 14 or Android 16 for the DS-D5A86RB/A3, while the published display brightness is 400cd/m². Confirm the supplied operating-system revision, brightness specification, wall-mount accessories, OPS module, cables, installation service and warranty before purchase.
This A3 model is ideal when an organisation needs a large interactive smart board for teaching, presentations and group collaboration. It prioritises an expansive 86-inch workspace, precise 50-point touch, EDLA-certified Android and modern connectivity. Unlike B3 conferencing models, the A3 does not specify an integrated camera or microphone array, allowing buyers to add their preferred conferencing system when required.
| Model | Screen Size | Conferencing Hardware | Recommended Use |
|---|---|---|---|
| DS-D5A86RB/A3 | 86-inch | No integrated camera or microphone specified | Large classrooms and boardrooms |
| Hikvision DS-D5A75RB/A3 | 75-inch | No integrated camera or microphone specified | Medium-to-large presentation spaces |
| Hikvision DS-D5A75RB/B3 | 75-inch | Camera and eight-microphone array | Hybrid classrooms and meeting rooms |
| Hikvision DS-D5C75RB/B2L | 75-inch | Camera, microphone array and enhanced audio | AI-assisted hybrid collaboration |
It provides 4K UHD resolution of 3840 × 2160 pixels at 60Hz.
The infrared touchscreen supports up to 50 simultaneous touch points.
Regional Hikvision materials identify Android 14 or Android 16. Confirm the supplied EDLA-certified revision before ordering.
Yes. Its built-in Android platform supports compatible applications, presentations and whiteboarding independently.
Windows operation requires a separately purchased compatible OPS computer module.
No integrated camera or microphone array is specified. External conferencing hardware can be connected when required.
Yes. Its 86-inch 4K screen, wide viewing angles and integrated speakers suit large teaching and presentation spaces.
Touch IT supplies professional interactive displays in Bangladesh with product consultation, installation planning, configuration assistance and after-sales support. The team can help verify the Android revision, mounting arrangement, OPS requirements and room suitability before deployment.
Upgrade your classroom or boardroom with a large 4K workspace and responsive collaborative touch. Order the Hikvision DS-D5A86RB/A3 Interactive Flat Panel from Touch IT, visit ECS Computer City Center, Level 3, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
