| Camera | ||
| Image Sensor | 5MP CMOS | |
| Max Resolution | 2880 × 1620 | |
| Min. Illumination | 0.02 Lux @ F2.0, 30IRE; 0 Lux with IR On | |
| Signal System | PAL / NTSC | |
| Shutter Speed | PAL: 1/25s to 1/100,000s; NTSC: 1/30s to 1/100,000s | |
| Day/Night | Auto ICR / Manual | |
| Lens & Illuminator | ||
| Lens Type | Fixed Lens / Fixed Iris | |
| Field of View | 2.8mm: D 125°, H 106°, V 56°; 3.6mm: D 104°, H 88°, V 46° | |
| Aperture | F2.0 | |
| Lens Mount | M12 | |
| Light Type | IR | |
| IR Distance | Up to 20 m | |
| Video & Audio | ||
| Video Output | CVI / TVI / AHD / CVBS Switchable by One BNC Port | |
| Max Frame Rate | CVI: 5MP@25fps, 4MP@25/30fps, 1080p@25/30fps; AHD: 4MP@25/30fps; TVI: 4MP@25/30fps; CVBS: 960H | |
| Resolution Support | 5M 2880 × 1620, 4M 2560 × 1440, 1080p 1920 × 1080, 960H | |
| WDR | DWDR | |
| Audio | Built-in Microphone | |
| Audio Over Coax | Supported via Built-in Mic | |
| Image & Smart Functions | ||
| Image Enhancement | BLC, HLC, DWDR, 2D Noise Reduction | |
| White Balance | Auto / Manual | |
| AGC | Supported | |
| Image Control | OSD Menu, Mirror On/Off, Privacy Masking 8 Areas | |
| Smart Light / Smart IR | Smart IR Supported | |
| Mirror / Image Adjustment | Mirror On / Off | |
| Interface | ||
| Audio Interface | One-Channel Built-in Mic | |
| Video Interface | 1 × BNC Port, Switchable CVI / TVI / AHD / CVBS | |
| Physical Specification | ||
| Power Supply | 12V DC ±30% | |
| Power Consumption | Max. 3.7W, IR On | |
| Operating Temp | -40°C to +60°C; Less than 95% RH | |
| Material | Plastic | |
| Weatherproof | IP67 | |
| Dimensions | 69.8 × 69.8 × 149.3 mm | |
| Weight | Net: 0.15 kg; Gross: 0.25 kg | |
| Certifications | CE, FCC, IP67 | |
| Warranty | ||
| Warranty | 1 Year | |

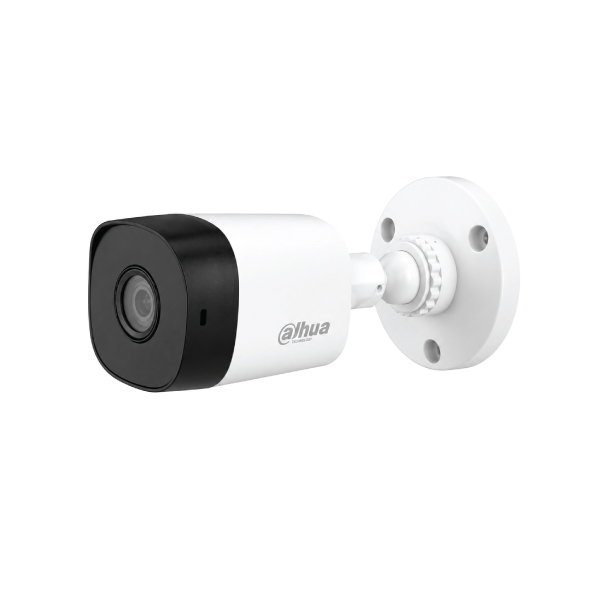

The Dahua HAC-B1A51P 5MP HDCVI Fixed IR Bullet Camera is an HD analog surveillance camera for homes, shops, offices, warehouses and commercial properties. It combines detailed 5MP video, Smart IR night monitoring, multi-format output and IP67 weather protection in a compact bullet-style housing.
For buyers comparing the Dahua HAC-B1A51P price in Bangladesh, this model offers a practical way to upgrade a compatible coaxial CCTV system without changing to IP cameras. The current price at Touch IT is ৳1,950. Confirm the supplied lens, A51-S2 hardware version, XVR compatibility, stock and warranty before ordering.
The HAC-B1A51P transmits high-resolution video through coaxial cable to a compatible XVR. Its directional bullet design provides a visible security presence, while Smart IR supports continuous monitoring in darkness. Multi-format output also makes the camera suitable for supported new installations and analog-system upgrades.
The 5MP CMOS sensor captures video at a maximum resolution of 2880 × 1620. This provides more image detail than standard 1080p analog cameras and can improve general observation of entrances, vehicles and movement. Explore compatible recorders and cameras under CCTV Surveillance.
The A51-S2 version supports widescreen 5MP HDCVI video at up to 25 frames per second. When used with a compatible Dahua XVR, this provides detailed footage with smoother movement for everyday residential and commercial security monitoring.
The integrated infrared illuminator provides night coverage up to 20 metres. Smart IR manages illumination intensity automatically to help reduce overexposure when a person or object approaches the camera, producing more balanced black-and-white images in darkness.
Dahua lists a 3.6mm fixed lens as standard and a 2.8mm version as optional. The wider 2.8mm option provides approximately 106° horizontal coverage, while the 3.6mm lens offers an approximately 88° horizontal view. Browse more models on the Dahua CC Camera page.
One BNC port can output CVI, TVI, AHD or CVBS video. This flexibility allows the camera to operate with different supported analog recorders. The connected XVR must support the chosen signal format and resolution to provide the intended image quality.
DWDR, BLC and HLC help manage backlight, strong highlights and uneven exposure. Automatic gain control, 2D noise reduction, white-balance adjustment, mirror mode and privacy masking for up to eight rectangular areas provide additional installation control.
The IP67-rated plastic housing provides protection against dust and water when correctly installed. Its adjustable bracket supports pan, tilt and rotation for accurate positioning on walls, ceilings or suitable poles. Explore broader property protection options under Security System Solutions.
| Product Name | Dahua 5MP HDCVI Fixed IR Bullet Camera |
|---|---|
| Model | DH-HAC-B1A51P |
| Applicable Series | A51-S2 |
| Image Sensor | 5MP CMOS with progressive scanning |
| Maximum Resolution | 2880 × 1620 |
| Maximum Frame Rate | Up to 25fps at 5MP through HDCVI |
| Minimum Illumination | 0.02 lux at F2.0, 30 IRE; 0 lux with IR on |
| Lens | M12 fixed lens; 3.6mm standard and 2.8mm optional |
| Field of View | 2.8mm: H 106°, V 56°, D 125°; 3.6mm: H 88°, V 46°, D 104° |
| Night Monitoring | Smart IR up to 20m |
| Angle Adjustment | Pan 0°–360°, tilt 0°–90°, rotation 0°–360° |
| Video Output | Selectable CVI, TVI, AHD and CVBS through one BNC port |
| Image Functions | DWDR, BLC, HLC, AGC, 2D NR, mirror and privacy masking |
| Power and Environment | 12V DC ±30%; −40°C to +60°C; below 95% RH |
| Body and Protection | Plastic; 69.8 × 69.8 × 149.3mm; 0.15kg; IP67 |
Verification note: Dahua’s current A51-S2 documentation lists 2880 × 1620 video at up to 25fps, an F2.0 lens and 20m Smart IR. Older Bangladesh listings may show 2592 × 1944, 20fps and an F1.85 aperture. The product title supplied here does not include the “-A” suffix, so a built-in microphone is not claimed; confirm the physical label if audio is required. Dahua states that XVR firmware V4.001.0000001.0.R.200908 or later is required for 5MP 16:9 operation.
This Dahua 5MP bullet CC camera suits customers who need detailed analog video, reliable infrared monitoring and outdoor protection at a practical cost. It can operate through existing coaxial infrastructure and supports multiple video formats, making it useful for compatible system upgrades.
| Model | Best For | Main Difference |
|---|---|---|
| HAC-B1A51P | Affordable outdoor 5MP monitoring | 20m Smart IR, 4-in-1 output and IP67 |
| Dahua HAC-B1A21P-U-IL-A | Entry-level audio surveillance | 2MP video with Smart Dual Light and microphone |
| Dahua HAC-HFW1200CLP-IL-A | General 1080p outdoor monitoring | 2MP resolution with dual light and audio |
| Dahua DH-HAC-HFW1200RP | Traditional IR surveillance | Lower 2MP resolution with Smart IR bullet design |
No. It is an HD analog HDCVI camera that connects to a compatible XVR through BNC coaxial cable.
A microphone is not claimed for the standard model without the “-A” suffix. Confirm the product label if audio recording is required.
The official A51-S2 specification lists a maximum resolution of 2880 × 1620, commonly described as 5MP.
Dahua specifies Smart IR illumination up to 20 metres, depending on the scene, mounting position and environmental conditions.
Dahua lists 3.6mm as standard and 2.8mm as optional. Confirm the supplied lens before purchasing.
Yes. Its IP67-rated housing supports outdoor use when the camera, power connection and BNC connection are properly protected.
Not necessarily. The recorder must support the selected video signal and 5MP resolution, with the required firmware for 16:9 operation.
