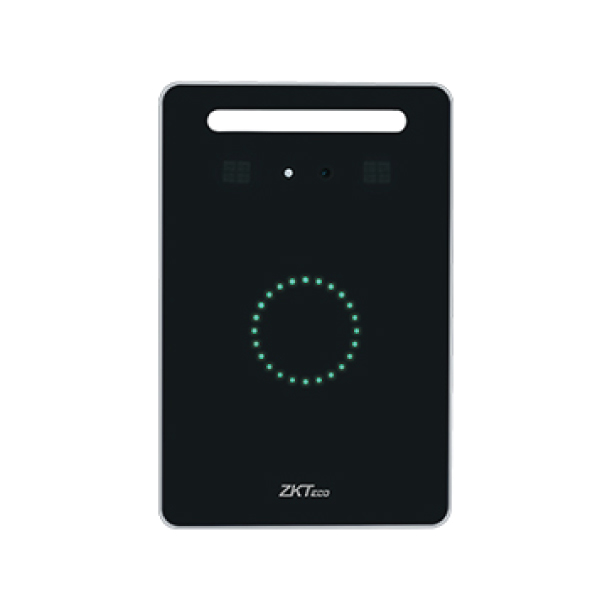

ZKTeco KF1200 Pro Visible Light Facial Recognition Reader

10,800৳ 12,500৳
Product Highlights
  • Brand: ZKTeco
  • Model: KF1200 Pro
  • Visible Light Face & RFID Authentication
  • Dual 2MP Cameras, No Display or Fingerprint
  • RS485 Reader Mode for InBio Pro Plus
  • DM10 Door Control & Single-Gang Mount

In Stock

remove add
Main Features
Operating SystemLinux OS
Camera2MP Dual Camera
HardwareCPU: 1.2GHz Dual Core
RAM: 256MB; ROM: 512MB
Authentication MethodFace / Card
Face CapacityFace Reader Mode: 3,000 Store in InBio Pro Plus (Default)
A&C Standalone Mode: 1,500 (1:N) (with DM10) (Optional)
Card CapacityFace Reader Mode: 100,000 Store in InBio Pro Plus (Default)
A&C Standalone Mode: 30,000 (1:N) (with DM10) (Optional)
User CapacityFace Reader Mode: 100,000 Store in InBio Pro Plus (Default)
A&C Standalone Mode: 30,000 (1:N) (with DM10) (Optional)
Transaction CapacityFace Reader Mode: 500,000 Store in InBio Pro Plus (Default)
A&C Standalone Mode: 100,000 (1:N) (with DM10) (Optional)
Card TypeID Card @ 125 kHz (Standard)
IC Card @ 13.56 MHz (Optional)
Biometric Verification Speedless than 0.3 sec (Facial Recognition)
Touchless Biometric Recognition Distance30cm to 50cm (Facial Recognition)
False Acceptance Rate (FAR) % FAR ≤ 0.01%
False Rejection Rate (FRR) %FRR ≤ 0.02%
Biometric AlgorithmZKLiveface 3.5 / 4
CommunicationFace Reader Mode: ZKTeco RS-485*1
A&C Standalone Mode / Face Template Mode: TCP/IP * 1
Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz (Optional)
Standard FunctionsFace Reader Mode (with InBio Pro Plus)
A&C Standalone Mode (with DM10)
Face Template Mode (Default)
Optional FunctionsIC [email protected] MHz (Optional)
Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz (Optional)
Access Control InterfaceA&C Standalone Mode (with DM10)
Physical Specification
Power Voltage DC 12V 3A
Operating Temperature-10°C to 50°C
Operating Humidity10% to 90% RH (Non-condensing)
Material Aluminium Alloy
Dimensions121mm * 80mm * 13.8mm (L * W * H)
Gross Weight0.36Kg
Net Weight0.27Kg
InstallationWall-mount(Compatible with Single Gang Box)
Certifications ISO14001, ISO9001, CE, FCC, RoHS
Manufacture Warranty
Warranty1 Year

ZKTeco KF1200 Pro Visible Light Facial Recognition Reader

The ZKTeco KF1200 Pro visible light facial recognition reader captures a face or compatible RFID card at a controlled entrance. Its slim aluminium-alloy body and single-gang-box mounting suit offices where a tidy installation matters.

For buyers checking the ZKTeco KF1200 Pro price in Bangladesh, Touch IT lists it at ৳10,800. Face reader mode requires a compatible InBio Pro Plus controller; access control terminal mode needs a DM10 door-lock extension panel. Confirm accessories, card format and warranty before ordering.

Quick Highlights

  • Authentication: Visible light face recognition or RFID card
  • Cameras: Dual 2MP cameras; no display or fingerprint sensor
  • Reader mode: RS-485 connection to InBio Pro Plus
  • Door control mode: Requires a separate DM10 extension panel
  • Cards: 125kHz ID standard; 13.56MHz IC optional
  • Installation: 121 × 80 × 13.8mm; single-gang-box compatible

Product Overview

The KF1200 Pro belongs in an access control system. In face reader mode, it passes a compact face template over ZKTeco RS-485 to an InBio Pro Plus controller for authentication. Up to 3,000 face templates are stored in that controller, not the reader. The separate DM10 enables a door-control mode with different limits. Mode selection affects wiring and software.

Key Features and Benefits

Contactless Face Verification

Two 2MP cameras and ZKLiveface support published verification under 0.3 seconds at a 30–50cm recognition distance. Users stand close to the reader beside a controlled door. Lighting, mounting height and enrollment quality affect results.

Face or Card for Everyday Access

The standard card format is 125kHz ID; a 13.56MHz IC reader is optional. This gives users a card alternative where the hardware and access rules support it. Check a sample card before ordering. The KF1200 Pro has no fingerprint sensor or keypad for fingerprint or PIN verification.

Two Distinct System Modes

InBio Pro Plus receives face templates over RS-485, stores users and applies access rules. With a separate DM10, access control terminal mode supports up to 1,500 faces, 30,000 cards and 100,000 transactions. The reader alone does not provide this door-control arrangement. Confirm panel and firmware compatibility.

Network and Software Planning

ZKTeco lists TCP/IP for access control terminal and face template modes, optional 2.4GHz Wi-Fi, and RS-485 in face reader mode. ZKBio CVSecurity support is documented. Confirm the operating mode, network path and software version; Wi-Fi availability depends on the supplied configuration.

Compact Fit for a Finished Wall

At 121 × 80 × 13.8mm, the KF1200 Pro mounts on a compatible single-gang box. ZKTeco specifies a 12V DC, 3A supply and −10°C to 50°C operation. No manufacturer IP rating is published, so assess protection before installation at an exposed entrance.

Recommended Applications

  • Office entrances connected to an InBio Pro Plus controller
  • Staff-only rooms in clinics, schools and commercial buildings
  • Reception and internal doors using face or supported card access
  • Controlled exit points when the host system is designed for that role

For other door-side devices, explore the exit reader range. A complete security system may also need a compatible panel, lock, power supply, exit button and emergency-release arrangement.

Technical Specifications

ModelZKTeco KF1200 Pro
Product typeVisible light facial authentication and RFID reader
CamerasDual 2MP; no display
Processor and memory1.2GHz dual-core CPU; 256MB RAM; 512MB ROM
RecognitionUnder 0.3 seconds; 30–50cm published distance
Card technology125kHz ID standard; 13.56MHz IC optional
Face reader modeZKTeco RS-485; up to 3,000 templates stored in InBio Pro Plus
Door control modeWith DM10; up to 1,500 faces and 30,000 cards
Other connectionsTCP/IP for specified modes; optional 2.4GHz Wi-Fi
SoftwareZKBio CVSecurity, subject to configuration
Power12V DC, 3A supply specification
Environment−10°C to 50°C; 10–90% RH, non-condensing
Housing and sizeAluminium alloy; 121 × 80 × 13.8mm
MountingWall mount; compatible with a single-gang box

Before ordering: Verify whether the DM10, controller, power adapter and IC-card module are included. Reader-mode capacities refer to the InBio Pro Plus host. No manufacturer IP rating is established for this model.

ZKTeco KF1200 Pro Product Comparison

ModelMain differenceSuitable project
KF1200 ProFace/card reader; single-gang mounting; DM10 optionInBio Pro Plus face access or a DM10-based door
KF1100 ProSame series; smaller 91 × 91mm Asian-gang-box formatSites using that mounting box
FR1500SFingerprint/card reader rather than face readerProjects preferring fingerprint verification
SenseFace 2A WiFiFace, fingerprint and card terminal with screenSites needing more methods in one terminal

Browse ZKTeco access control to compare a reader-and-controller design with other terminal choices.

Frequently Asked Questions

Can the KF1200 Pro unlock a door without a controller?

It needs an InBio Pro Plus host in reader mode. Door control mode requires the separate DM10 extension panel and appropriate configuration.

How many faces can it support?

The documented InBio Pro Plus reader arrangement stores up to 3,000 face templates in the controller. DM10 mode lists up to 1,500.

Does it have Wi-Fi or fingerprint verification?

Wi-Fi is an optional configuration. Fingerprint verification is not listed; this model authenticates by face or compatible card.

Can it be installed outdoors?

ZKTeco does not list an ingress protection rating. Assess shelter, moisture and temperature before specifying an exposed mounting point.

Will it work with an older InBio panel?

Confirm the exact model. ZKTeco distinguishes the Pro reader's RS-485 connection to InBio Pro Plus from older KF-series and InBio configurations.

Why Buy from Touch IT?

Touch IT supplies access equipment to customers in Dhaka and across Bangladesh. Share your panel model, card type and desired door configuration before ordering. Browse other ZKTeco products for related access hardware.

Order the ZKTeco KF1200 Pro Facial Reader

Plan contactless entry around the ZKTeco KF1200 Pro visible light facial recognition reader. Contact Touch IT to confirm stock, controller or DM10 requirements, card option, power and installation accessories.

What is the price of ZKTeco KF1200 Pro Facial Recognition Reader in Bangladesh?

The latest price of ZKTeco KF1200 Pro Facial Recognition Reader in Bangladesh is 10,800৳. You can buy the ZKTeco KF1200 Pro Facial Recognition Reader at best price from our website or visit any of our showrooms.
