| System | ||
| Main Processor | Embedded high-performance multi-core processor | |
| Operating System | Embedded Linux OS | |
| Audio and Video | ||
| IP Camera Input | 64-channel IP input | |
| Two-Way Talk | 1-channel RCA two-way audio (audio input & output) | |
| Display | ||
| Interface | 2 × HDMI, 2 × VGA (independent & simultaneous output) | |
| Resolution | HDMI: Up to 4K (3840×2160) @60Hz VGA: Up to 1920×1080 @60Hz |
|
| Decoding Capacity | Ultra 265 / H.265 / H.264 Up to 32MP decoding (Smart On/Off modes supported) |
|
| Multi-Screen Display | 64-screen (64E) | |
| OSD | Camera title, time, channel, alarm, recording status | |
| Recording | ||
| Compression | Ultra 265, H.265, H.264 | |
| Resolution | 32MP / 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / CIF | |
| Record Rate | Up to 30fps per channel (depending on resolution & smart mode) | |
| Bit Rate | Smart Off: Up to 384 Mbps Smart On: Up to 200 Mbps |
|
| Record Mode | Manual, Continuous, Schedule, Motion, Alarm, Smart Event | |
| Record Interval | Configurable | |
| Others | ANR (Automatic Network Replenishment), RAID recording, N+1 Hot Spare | |
| Video Detection And Alarm | ||
| Trigger Event | Motion detection, smart event, alarm input, system exception | |
| Video Detection | Face detection, vehicle detection, intrusion, line crossing, people counting, heat map, UMD | |
| Alarm Input | 16-channel alarm input | |
| Relay Output | 10-channel alarm output | |
| Playback And Backup | ||
| Sync Playback | Up to 16 channels synchronous playback | |
| Search Mode | Time, event, alarm, smart search, face, vehicle, metadata | |
| Playback Function | Play, pause, fast/slow, frame-by-frame, zoom, snapshot | |
| Backup Mode | USB device, eSATA, network backup | |
| Third Party Support | ||
| Third Party Support | ONVIF Profile S / G / T, RTSP | |
| Network | ||
| Interface | RJ45 Ethernet interface | |
| Ethernet Port | 2 × RJ45 10/100/1000 Mbps self-adaptive | |
| Network Function | TCP/IP, HTTP, HTTPS, NTP, DHCP, PPPoE, DNS, DDNS, SNMP, SMTP, RTSP, NFS, IPv4, IPv6, 802.1x | |
| Maximum User Access | 128 users | |
| Smart Phone | Supported via mobile app (iOS & Android) | |
| Interoperability | ONVIF compliant, third-party IP camera support | |
| Storage | ||
| eSATA | 1 × eSATA | |
| HDD Mode | RAID 0 / 1 / 5 / 6 / 10, hot swap supported Up to 16TB per HDD |
|
| Internal HDD | 8 × SATA interfaces | |
| Auxiliary Interface | ||
| USB | Front: 2 × USB 2.0 Rear: 2 × USB 3.0 |
|
| RS232 | 1 × RS232 | |
| RS485 | 1 × RS485 | |
| Power | ||
| Power Supply | AC 100–240V | |
| Power Consumption | ≤ 35W (without HDD) | |
| Component Environment | ||
| Operational Conditions | Temperature: -10°C to +50°C Humidity: ≤ 90% RH (non-condensing) |
|
| Storage Conditions | Standard indoor storage conditions | |
| Construction | ||
| Dimensions | 443 × 448 × 93 mm (2U rack mount) | |
| Net Weight | ≤ 6.5 kg (without HDD) | |
| Gross Weight | Approx. 8 kg | |
| Warranty | ||
| Manufacturing Warranty | 1 Year | |

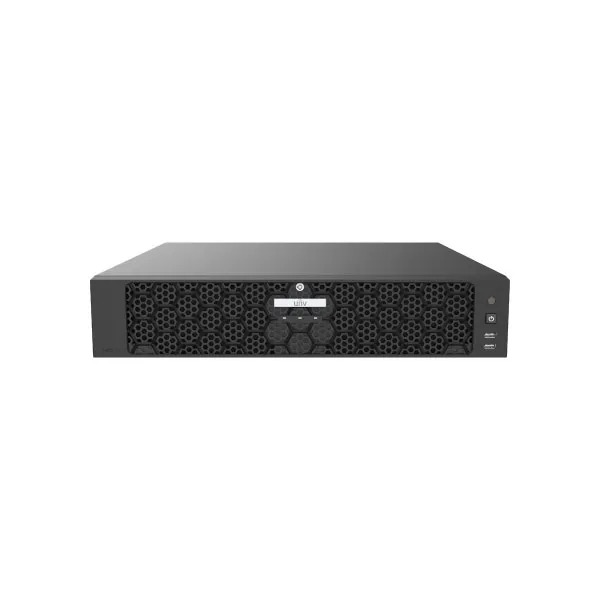

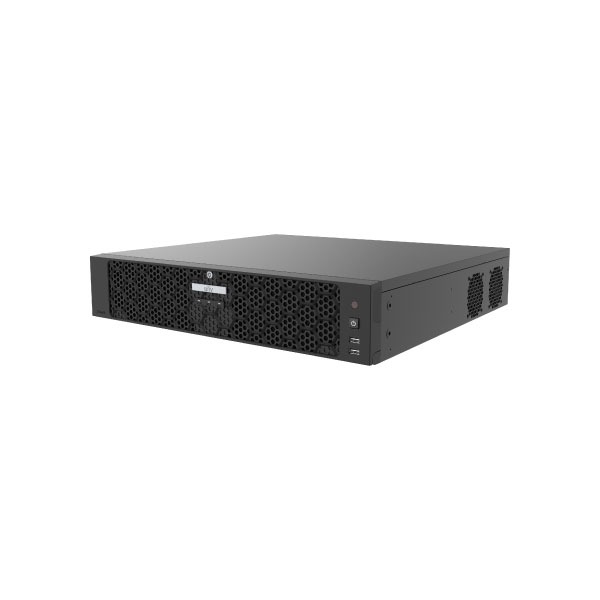

The Uniview NVR508‑64E‑R‑IQ 64 Channel 4K NVR is a powerful 64-channel 4K Smart Network Video Recorder designed for enterprise-level video surveillance. Built for reliability, ultra-high resolution recording, and advanced storage protection, this NVR is ideal for large commercial sites, industrial facilities, and mission-critical security systems.
This Uniview NVR508‑64E‑R‑IQ 64 Channel 4K NVR supports Ultra 265, H.265, and H.264 video formats, delivering crystal-clear 4K and up to 32MP recording while significantly reducing bandwidth and storage usage. With support for 32/64-channel IP camera input, it is perfectly suited for scalable surveillance systems that demand both performance and efficiency.
The Uniview NVR508‑64E‑R‑IQ 64 Channel 4K NVR supports mainstream IP cameras with full ONVIF compliance (Profile S, G, and T) and RTSP protocols, ensuring seamless integration with third-party cameras. It features 2 HDMI and 2 VGA outputs, allowing VGA1/HDMI1 and VGA2/HDMI2 to run simultaneous or independent displays—ideal for multi-monitor control rooms and security operation centers.
Designed for maximum data security, this Uniview NVR508‑64E‑R‑IQ 64 Channel 4K NVR supports HDD hot swap and advanced RAID configurations including RAID 0, 1, 5, 6, and 10. The N+1 hot spare function ensures uninterrupted recording even during hard drive failure, while optional redundant power supply adds another layer of operational reliability for critical environments.
With built-in ANR (Automatic Network Replenishment) technology, the Uniview NVR508‑64E‑R‑IQ 64 Channel 4K NVR safeguards video data during network interruptions by automatically syncing recordings once the connection is restored. Cloud upgrade support ensures your system stays up to date with the latest features and security enhancements.
At Touch IT, we provide 100% genuine Uniview NVR508‑64E‑R‑IQ 64 Channel 4K NVR with expert guidance, competitive pricing, and reliable after-sales support. Our experienced team helps you choose the right NVR solution for your project, ensuring maximum performance, long-term reliability, and complete peace of mind. When you buy from Touch IT, you invest in trusted technology backed by professional service.
The latest price of Uniview NVR508‑64E‑R‑IQ 64 Channel 4K NVR in Bangladesh is 69,500৳. You can buy the Uniview NVR508‑64E‑R‑IQ 64 Channel 4K NVR at best price from our website or visit any of our showrooms.
