Out Of Stock
| Hardware | ||
| Product Type | 86-Inch 4K UHD Interactive Flat Panel | |
| Operating System | Android System | |
| Android Version | Android 13.0 | |
| Processor (CPU) | 4 × A76, 2.4GHz + 4 × A55, 1.8GHz | |
| RAM | 8GB | |
| Internal Storage | 128GB | |
| Display | ||
| Screen Size | 86 Inch | |
| Display Technology | 4K UHD DLED Display | |
| Resolution | 3840 × 2160 | |
| Aspect Ratio | 16:9 | |
| Brightness | 400 cd/m² | |
| Contrast Ratio | 1200:1 | |
| Viewing Angle | 178° Horizontal / 178° Vertical | |
| Refresh Rate | 60Hz | |
| Response Time | 8ms | |
| Color Gamut | 72% | |
| Backlight Type | DLED | |
| Surface Treatment | 4mm Tempered Anti-Glare Glass, 25% Haze | |
| Glass Hardness | 9H Surface Hardness; Level 7 Mohs | |
| Display Lifespan | 50,000 Hours | |
| Touch Performance | ||
| Touch Technology | Infrared Touch | |
| Touch Points | Up to 40-Point Multi-Touch; Windows: 40-Point, Android: 32-Point | |
| Touch Accuracy | ±1 mm | |
| Touch Response Time | 3.3ms | |
| Stylus Support | Opaque Objects Supported, Including Fingers and Pens | |
| Audio & Camera | ||
| Built-in Speakers | Yes | |
| Speaker Output | 2 × 15W | |
| Connectivity | ||
| Wi-Fi | Wi-Fi 5 + Wi-Fi 6, Supports 5GHz / 2.4GHz | |
| Bluetooth | Bluetooth 5.2 | |
| Ethernet (LAN) | 1 × LAN IN, 1 × LAN OUT | |
| Ports & Interfaces | ||
| HDMI Input | HDMI IN 4K × 3 | |
| HDMI Output | HDMI OUT 4K × 1; DP OUT × 1 | |
| USB Type-A | Front USB 3.0 × 3; On-Board USB 3.0 × 4 | |
| USB Type-C | Type-C × 2 | |
| USB Touch | TOUCH USB × 2 | |
| RJ45 | LAN IN × 1; LAN OUT × 1 | |
| RS-232 | RS232 × 1 | |
| Audio Output | Earphone × 1; Line Out × 1; SPDIF Coax × 1 | |
| Power & Physical | ||
| Power Supply | AC 100V to 240V, 50/60Hz | |
| Power Consumption | <360W Without OPS; Standby: <0.5W | |
| VESA Mount | 800 × 400 mm, 4 × M8 Screw Hole | |
| Product Dimensions | 1966.5 × 1173.2 × 105.3 mm | |
| Net Weight | 68 kg | |
| Operating Temperature | 0°C to 50°C | |
| Certifications (CE / FCC / RoHS) | CE-EMC, CE-RED, CB/LVD, FCC, FCC-ID | |
| Warranty | ||
| Warranty | 3 Years | |

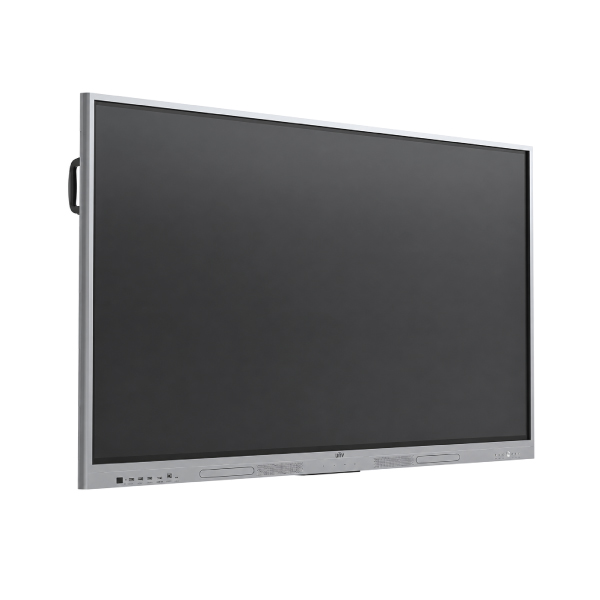

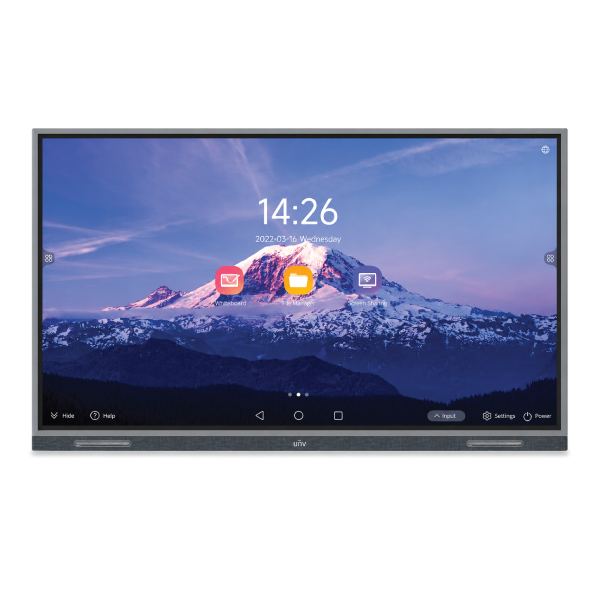

The Uniview MW3586-U-CE 86-Inch 4K UHD Interactive Flat Panel is a display for lecture halls, training rooms and boardrooms. Its DLED screen, infrared touch, Android 13 and wireless sharing support presentation and collaboration.
For organizations checking the Uniview MW3586-U-CE price in Bangladesh, this model provides 8GB RAM, 128GB storage, Wi-Fi 5/Wi-Fi 6 and Bluetooth 5.2. The product is currently Out of Stock at Touch IT. Confirm restock timing, final price, supplied revision and warranty terms.
The MW3586-U-CE combines a presentation display and digital whiteboard. Its 86-inch canvas improves visibility in large rooms, while Android tools enable writing, screenshots and wireless sharing. Wired inputs help integration with presentation equipment.
The 3840 × 2160 DLED panel displays documents and videos clearly. Its 1200:1 contrast, 60Hz refresh rate and 178-degree viewing angle support wide-room visibility. The 4 mm anti-glare tempered glass reduces reflections and protects the touchscreen. Explore the interactive flat panel range for other sizes.
Infrared technology provides ±1 mm touch accuracy and accepts fingers or compatible stylus pens. Presenters can write, highlight diagrams, capture screenshots and annotate content. Quick tools and optical character recognition support efficient lessons and discussions.
The RK3588 octa-core platform combines Cortex-A76 and Cortex-A55 cores. With 8GB DDR4 RAM and 128GB eMMC storage, it supports whiteboarding, presentations and compatible Android applications. Browse other Uniview products for complementary solutions.
Compatible Android, iOS and Windows devices can mirror content to the panel. QR file transfer and over-the-air updates simplify use. Dual-band Wi-Fi supports 2.4GHz and 5GHz connections, while Bluetooth 5.2 works with compatible peripherals.
HDMI, DisplayPort, VGA, USB 3.0, two USB Type-C ports, touch USB, LAN and RS-232 accommodate presentation sources. Integrated speakers handle multimedia. Combine the panel with suitable office equipment, an optional camera, microphone, dongle, stand or OPS computer.
| Brand | Uniview |
|---|---|
| Model | MW3586-U-CE |
| Product Type | Smart interactive display / interactive flat panel |
| Panel | 86-inch DLED, 16:9 aspect ratio |
| Resolution | 3840 × 2160 at 60Hz |
| Contrast and Viewing Angle | 1200:1; 178° horizontal / 178° vertical |
| Touch Technology | Infrared multi-touch, ±1 mm accuracy |
| Protective Glass | 4 mm anti-glare tempered glass, 9H surface hardness |
| Operating System | Android 13 |
| Processor | RK3588: 4 × Cortex-A76 2.4GHz + 4 × Cortex-A55 1.8GHz |
| Memory and Storage | 8GB DDR4 RAM; 128GB eMMC |
| Wireless | 2.4/5GHz Wi-Fi 5/Wi-Fi 6; Bluetooth 5.2 |
| Main Interfaces | 3 × HDMI IN, DP IN/OUT, HDMI OUT, VGA, USB 3.0, 2 × Type-C, LAN IN/OUT and RS-232 |
| Power | AC 100–240V, 50/60Hz; below 360W without OPS |
| Dimensions | 1966.5 × 1173.2 × 105.3 mm on the current product webpage |
| Weight | 68 kg net; 82 kg gross |
| Operating Environment | 0°C to 50°C; 10%–90% RH, non-condensing |
| VESA Mount | 800 × 400 mm, 4 × M8 mounting holes |
Uniview’s current webpage lists 400 cd/m² brightness, up to 40-point touch and 2 × 15W speakers. Its official 2024 datasheet instead lists 350 cd/m², 50-point touch, 20-point writing, a touch response of no more than 2 ms and 40W combined audio. It also publishes an 89 mm enclosure depth. These differences may reflect region or production revision. Camera, microphone, OPS module, wireless dongle and mobile stand are optional unless included. Confirm the supplied revision, touch capacity, audio, accessories and warranty before deployment.
This model suits spaces where smaller screens are difficult to see. Its 86-inch 4K canvas, Android platform, ample memory, wireless sharing, anti-glare protection and broad port selection support regular institutional use.
| Model | Screen Size | Recommended Environment |
|---|---|---|
| Uniview MW3565-U-CE | 65 inches | Medium classrooms and meeting rooms |
| Uniview MW3575-U-CE | 75 inches | Larger classrooms and boardrooms |
| Uniview MW3586-U-CE | 86 inches | Lecture halls and large presentation spaces |
Yes. It has a native resolution of 3840 × 2160 pixels with a 60Hz refresh rate.
The verified configuration runs Android 13 with 8GB DDR4 RAM and 128GB eMMC storage.
Yes. Uniview publishes screen-mirroring support for compatible Android, iOS and Windows devices.
Yes. The infrared touchscreen supports multi-point interaction, although the maximum published capacity varies by official document and production revision.
No built-in camera is verified. Uniview lists compatible 4K camera and microphone modules as optional accessories.
Yes. Compatible Uniview i5 and i7 pluggable computer modules are listed as optional accessories.
The official listing includes a power cable, two stylus pens, quick guide, wall bracket and infrared remote control. Confirm the local package before ordering.
Touch IT supplies professional display solutions in Bangladesh with product consultation, compatibility checks, installation planning and after-sales support. The team can help confirm panel revision, mounting method, optional camera, OPS module and connectivity requirements.
