| Camera System | ||
| Image Sensor | Panorama: 1/1.8" 4MP CMOS Detail (PTZ): 1/2.7" 4MP CMOS |
|
| Maximum Resolution | 4MP (2688 × 1520) | |
| Scanning System | Progressive Scan | |
| Electronic Shutter Speed | Auto / Manual, 1 ~ 1/100000 s | |
| Day / Night Mode | Panorama: Color with warm light Detail: IR-cut filter with auto switch (ICR) |
|
| Minimum Illumination | Panorama: 0.0005 lux (F1.0, AGC ON), 0 lux with warm light Detail: 0.003 lux (F1.5, AGC ON), 0 lux with IR |
|
| Signal-to-Noise Ratio (S/N) | 56 dB | |
| Wide Dynamic Range (WDR) | 120 dB True WDR | |
| Digital Noise Reduction (2D/3D DNR) | 2D / 3D DNR | |
| Digital Defog | Supported (Digital Defog) | |
| Pan / Tilt / Rotation | Pan: 360° Tilt: -15° to 90° (Detail channel) Home position supported |
|
| Infrared & Illumination | ||
| IR Type | IR LED + Warm Light (Dual-light design) | |
| IR Distance | Up to 100 m (328 ft) | |
| IR Control (Auto / Manual) | Auto / Manual | |
| IR Wavelength | 850 nm (IR) | |
| Lens | ||
| Lens Type (Fixed / Varifocal / Motorized) | Panorama: Fixed lens Detail: Motorized varifocal lens with autofocus |
|
| Focal Length & Field of View (FOV) | Panorama: 4 mm @ F1.0 H: 94.9°, V: 51.5°, D: 116.7° Detail: 4.8 ~ 120 mm @ F1.5 H: 55.46° ~ 3.09°, V: 32.94° ~ 1.73°, D: 68.22° ~ 3.65° |
|
| Lens Mount | Integrated (Board-mounted) | |
| Iris Type | Panorama: Fixed iris Detail: Auto iris |
|
| Aperture (F-number) | Panorama: F1.0 Detail: F1.5 (Wide) ~ F3.8 (Tele) |
|
| DORI Distance | Panorama (4 mm): Detect 62.1 m / Identify 6.2 m Detail (4.8 mm): Detect 123.8 m / Identify 12.4 m Detail (120 mm): Detect 2475 m / Identify 247.5 m |
|
| Video & Image Processing | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| Smart Codec | U-code supported | |
| Main Stream / Sub Stream | Main Stream: 4MP Sub Stream: 1080P / 720P Third Stream: D1 |
|
| Frame Rate | Up to 30 fps on all streams | |
| Supported Resolution | 2688×1520, 1920×1080, 1280×720, 720×576 | |
| Bit Rate Control (CBR / VBR) | 128 Kbps ~ 16 Mbps (CBR / VBR) | |
| Region of Interest (ROI) | Up to 8 regions | |
| Scalable Video Coding (SVC) | Supported (U-code) | |
| On-Screen Display (OSD) | Up to 8 OSDs | |
| Image Enhancement (BLC / HLC) | BLC and HLC supported | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 | |
| Gain Control | Automatic | |
| Privacy Masking | Panorama: Up to 4 areas per scene Detail: Up to 24 areas (4 per scene) |
|
| Image Rotation / Flip | Normal / Vertical / Horizontal / 180° | |
| Smart & AI Features | ||
| Motion Detection | Supported | |
| Basic Event Detection | Motion detection, audio detection, tampering alarm | |
| Advanced AI Analytics (Human / Vehicle / Face – Model Dependent) | Auto tracking (Detail/PTZ channel) People counting and intelligent analysis (model dependent) |
|
| Audio & I/O | ||
| Audio Interface | 1/1 Audio I/O | |
| Built-in Speaker | Supported | |
| Audio Compression | G.711U, G.711A | |
| Audio Sampling Rate | 8 kHz | |
| Two-Way Audio | Supported | |
| Alarm Events | 2/1 Alarm I/O | |
| Reset Button | Supported | |
| Network & Storage | ||
| Network Interface (RJ45) | 1 × RJ45 10/100 Mbps Ethernet | |
| Network Protocols | IPv4, TCP/IP, UDP, RTSP, RTP, HTTP, HTTPS, FTP, SNMP, QoS, NTP, DDNS, SMTP, SSL/TLS | |
| ONVIF / Interoperability | ONVIF Profile S / G / T | |
| SDK & API Support | Supported | |
| Maximum User Access | Up to 32 users (3 user levels) | |
| Edge Storage (microSD) | Micro SD card up to 256 GB | |
| Network Storage (NAS / NVR) | ANR supported | |
| RS-485 | 1 × RS-485 | |
| Software & Access | ||
| Web Browser Support | IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |
| Management Software | EZStation | |
| Mobile App Support | EZLive, EZView | |
| Security Features | Password protection, HTTPS encryption, TLS 1.2, ONVIF authentication, IP filtering, operation logs | |
| Power & Physical Specifications | ||
| Power Supply | DC 12V (±25%) / PoE+ (IEEE 802.3at) | |
| Power Consumption | Maximum 24 W | |
| Operating Temperature | -40°C to +65°C | |
| Operating Humidity | ≤95% RH (non-condensing) | |
| Storage Temperature | -40°C to +70°C | |
| Ingress Protection (IP Rating) | IP66 | |
| Material | Outdoor-grade metal housing | |
| Dimensions (L × W × H) | Φ163 × 304 mm | |
| Net Weight | 2.27 kg | |
| Installation Type | Wall mount / pole mount / ceiling mount | |
| Compliance & Warranty | ||
| Certifications | CE, FCC, UL, CB, RoHS | |
| Manufacturer Warranty | 01 Year Warranty | |

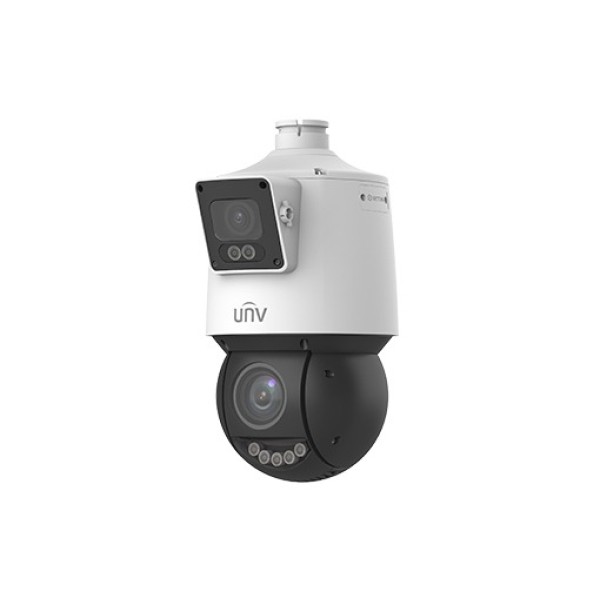

The Uniview IPC94144SFW-X25-F40C is an advanced MultiView PTZ IP camera designed for intelligent, large-area surveillance where both overall monitoring and detailed close-up views are essential. Combining a fixed camera and a powerful PTZ camera in one device, this dual-channel solution delivers unmatched situational awareness, making it ideal for smart city projects, commercial premises, campuses, and critical infrastructure. Available from Touch IT , this camera brings next-level security with clarity, intelligence, and reliability.
This innovative camera integrates a 4MP fixed camera and a 4MP PTZ camera into a single IP address, providing both a wide overview and detailed tracking simultaneously. While the fixed lens ensures continuous area coverage, the PTZ channel dynamically zooms and tracks targets, offering a smarter and more efficient surveillance solution without increasing network complexity.
Equipped with a 25X optical zoom on the PTZ channel, the Uniview IPC94144SFW-X25-F40C allows operators to capture fine details from long distances. This makes it highly effective for monitoring entrances, perimeters, roads, and open spaces where identifying people or incidents quickly is critical.
Powered by ColorHunter and LightHunter technologies, this PTZ IP camera delivers ultra-clear, full-color images even in extremely low-light environments. The combination of IR illumination and warm light adapts to different scenes automatically, ensuring reliable visibility day and night while reducing light pollution when needed.
This camera supports intelligent intrusion prevention features such as cross-line detection, intrusion detection, enter area, and leave area detection. Advanced false alarm filtering minimizes unnecessary alerts caused by non-human objects, ensuring security teams focus only on real threats.
The PTZ channel can be intelligently linked with the fixed camera’s smart intrusion rules. When a target triggers an event, the PTZ camera automatically tracks the object, providing continuous close-up monitoring. This seamless coordination enhances response accuracy and overall surveillance efficiency.
Designed for data-driven security and operations, the Uniview IPC94144SFW-X25-F40C supports people counting, people flow statistics, and crowd density monitoring. These features are ideal for shopping malls, transportation hubs, events, and public areas where understanding movement patterns is crucial.
The camera supports face detection with masked area support and automatically selects the best snapshots for accurate identification and evidence collection. This makes it suitable for high-security environments requiring reliable visual records.
To enhance proactive security, this PTZ camera features sound and light warning functions. When an intrusion is detected, visible and audible alerts help deter potential threats instantly, improving on-site safety.
With support for Ultra 265, H.265, H.264, and MJPEG compression, the camera significantly reduces bandwidth and storage costs without compromising image quality. It supports DC 12V and PoE+ (IEEE 802.3at) power supply for flexible installation.
The camera includes Alarm I/O (2/1) and Audio I/O (1/1), enabling seamless integration with external sensors, alarms, and audio devices. This makes it a complete solution for professional-grade surveillance systems.
At Touch IT , we provide genuine Uniview surveillance solutions backed by expert support and competitive pricing in Bangladesh. The Uniview IPC94144SFW-X25-F40C 4MP+4MP 25X ColorHunter MultiView Dual-light PT IP Camera is a future-ready security solution for organizations that demand intelligent monitoring, superior image quality, and dependable performance.
The latest price of Uniview IPC94144SFW-X25-F40C PTZ IP Camera in Bangladesh is 52,500৳. You can buy the Uniview IPC94144SFW-X25-F40C PTZ IP Camera at best price from our website or visit any of our showrooms.
