| Camera System | ||
| Image Sensor | 1/2.7" 5.0 Megapixel Progressive Scan CMOS | |
| Maximum Resolution | 5MP (2592 × 1944) | |
| Scanning System | Progressive Scan | |
| Electronic Shutter Speed | Auto / Manual, 1 ~ 1/100000 s | |
| Day / Night Mode | IR-cut filter with automatic switch (ICR) | |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR | |
| Signal-to-Noise Ratio (S/N) | 52 dB | |
| Wide Dynamic Range (WDR) | DWDR (Digital Wide Dynamic Range) | |
| Digital Noise Reduction (2D/3D DNR) | Supported (2D & 3D DNR) | |
| Digital Defog | Supported (Digital Defog) | |
| Pan / Tilt / Rotation | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |
| Infrared & Illumination | ||
| IR Type | Built-in Infrared LEDs | |
| IR Distance | Up to 30 m (98 ft) | |
| IR Control (Auto / Manual) | Auto / Manual | |
| IR Wavelength | 850 nm | |
| Lens | ||
| Lens Type (Fixed / Varifocal / Motorized) | Fixed Lens | |
| Focal Length & Field of View (FOV) | 2.8 mm @ F2.0 H: 105.3° | V: 69.5° | D: 136.9° 4.0 mm @ F2.0 H: 79.7° | V: 51.8° | D: 98.0° |
|
| Lens Mount | M12 | |
| Iris Type | Fixed Iris | |
| Aperture (F-number) | F2.0 | |
| DORI Distance | 2.8 mm: Detect 42 m | Observe 16.8 m | Recognize 8.4 m | Identify 4.2 m 4.0 mm: Detect 60 m | Observe 24 m | Recognize 12 m | Identify 6 m |
|
| Video & Image Processing | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| Smart Codec | Ultra 265 | |
| Main Stream / Sub Stream | Main Stream + Sub Stream | |
| Frame Rate | Main Stream: 5MP (2592 × 1944) @ up to 20 fps Sub Stream: 720P (1280 × 720) @ up to 20 fps |
|
| Supported Resolution | 2592 × 1944, 1280 × 720 | |
| Bit Rate Control (CBR / VBR) | CBR / VBR | |
| Region of Interest (ROI) | Up to 2 areas | |
| On-Screen Display (OSD) | Up to 4 OSDs | |
| Image Enhancement (BLC / HLC) | BLC & HLC Supported | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 | |
| Gain Control | Auto | |
| Privacy Masking | Up to 4 areas | |
| Image Rotation / Flip | Normal / Vertical / Horizontal / 180° | |
| Smart & AI Features | ||
| Motion Detection | Supported (Up to 4 areas) | |
| Basic Event Detection | Motion Detection | |
| Audio & I/O | ||
| Alarm Events | Motion Detection | |
| Reset Button | Supported | |
| Network & Storage | ||
| Network Interface (RJ45) | 1 × 10/100M Base-TX Ethernet | |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | |
| ONVIF / Interoperability | ONVIF Profile S, Profile T | |
| SDK & API Support | Supported | |
| Maximum User Access | Multiple Users | |
| Network Storage (NAS / NVR) | Supported | |
| Software & Access | ||
| Web Browser Support | IE9+, Chrome 41 and below, Firefox 52 and below (Plug-in required) Chrome 57+, Firefox 58+, Edge 16+, Safari 11+ (Plug-in free) |
|
| Management Software | EZStation | |
| Mobile App Support | EZView, EZLive | |
| Security Features | Password Protection, HTTPS Encryption, User Authentication | |
| Power & Physical Specifications | ||
| Power Supply | DC 12V ±25% / PoE (IEEE 802.3af) | |
| Power Consumption | Max. 4 W | |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Operating Humidity | ≤ 95% RH (Non-condensing) | |
| Storage Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Ingress Protection (IP Rating) | IP67 | |
| Material | Metal + Plastic | |
| Dimensions (L × W × H) | Φ118 × 96 mm (Φ4.6″ × 3.8″) | |
| Net Weight | 0.35 kg (0.77 lb) | |
| Installation Type | Ceiling / Wall Mount (Dome Installation) | |
| Compliance & Warranty | ||
| Certifications | CE (EN 60950-1), UL (UL60950-1), FCC (Part 15) | |
| Manufacturer Warranty | 1 Year Warranty | |

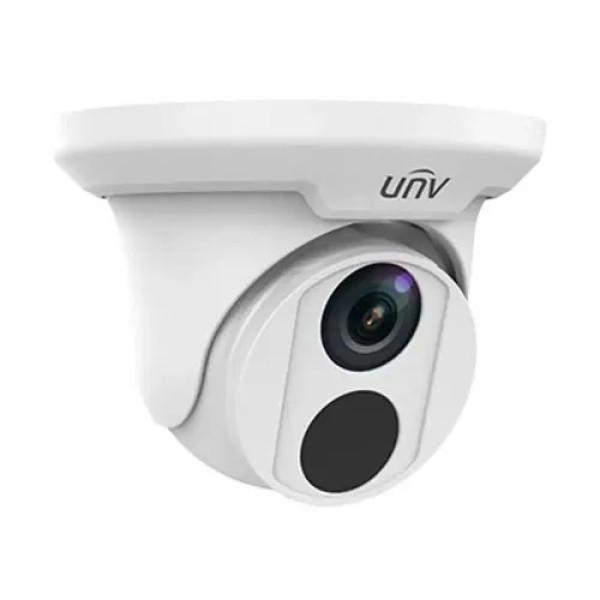

The Uniview IPC3615LR3-PF28-D 5MP Fixed Dome IP Camera is a reliable and high-performance security solution designed for crystal-clear surveillance in both indoor and outdoor environments. With sharp 5MP resolution, advanced night vision, and durable IP67 protection, this dome IP camera is ideal for homes, offices, retail stores, and commercial premises. At Touch IT , we bring you genuine Uniview IP cameras that deliver professional-grade security with long-term reliability.
Powered by a 1/2.7” 5.0 megapixel progressive scan CMOS sensor, this Uniview dome camera captures images at a maximum resolution of 2592 × 1944. The higher pixel density ensures sharp details, making it easier to identify faces, movements, and objects. With a smooth frame rate of up to 20fps, video playback remains clear and fluid for everyday surveillance needs.
The camera is available with 2.8mm and 4.0mm fixed lenses, allowing you to choose the best coverage for your space. The 2.8mm lens offers a wide horizontal field of view of 105.3°, perfect for open areas, while the 4.0mm lens provides more focused coverage with extended detection distances. Full pan, tilt, and rotation adjustment ensures precise installation and optimal viewing angles.
Equipped with Smart IR technology and an IR range of up to 30 meters (98 ft), the Uniview IPC3615LR3-PF28-D delivers dependable night surveillance. With 0 Lux illumination using IR and automatic day/night switching via IR-cut filter, the camera maintains clear images even in complete darkness, making it a dependable choice for 24/7 security.
This 5MP dome IP camera features DWDR (Digital Wide Dynamic Range), 2D/3D Digital Noise Reduction, HLC, BLC, and Digital Defog. These technologies work together to reduce noise, balance strong backlight, and enhance clarity in challenging lighting conditions such as glare, fog, or low light environments.
With support for Ultra 265, H.265, H.264, and MJPEG compression, this Uniview IP camera significantly reduces bandwidth and storage costs without compromising video quality. Smart functions like motion detection, ROI, privacy masking, and customizable OSD make monitoring more efficient and privacy-conscious.
The camera supports a wide range of network protocols and is fully compatible with ONVIF Profile S and T, ensuring easy integration with NVRs and third-party systems. Users can access live view and playback via EZStation, EZView, EZLive, or modern web browsers, making remote monitoring simple and convenient.
Built with a strong metal and plastic housing, the Uniview IPC3615LR3-PF28-D is rated IP67 for dust and water resistance. It operates reliably in extreme temperatures from -30°C to 60°C, making it suitable for harsh outdoor environments. With PoE support and low power consumption of only 4W, installation is both clean and energy-efficient.
At Touch IT , we offer authentic Uniview security cameras, competitive pricing, and expert support. The Uniview IPC3615LR3-PF28-D 5MP Fixed Dome IP Camera is an excellent choice for anyone looking for a high-resolution, durable, and cost-effective surveillance solution backed by trusted technology.
The latest price of Uniview IPC3615LR3-PF28-D IP Camera in Bangladesh is 6,800৳. You can buy the Uniview IPC3615LR3-PF28-D IP Camera at best price from our website or visit any of our showrooms.
