In Stock
| Camera System | ||
| Image Sensor | 1/1.8" Progressive Scan CMOS Sensor | |
| Maximum Resolution | 4 Megapixel (2688 × 1520) | |
| Scanning System | Progressive Scan | |
| Electronic Shutter Speed | Auto / Manual, 1 ~ 1/100000 s | |
| Day / Night Mode | Color Mode (No IR / No Supplemental Light) | |
| Minimum Illumination | Color: 0.0003 Lux (F1.0, AGC ON) | |
| Signal-to-Noise Ratio (S/N) | 52 dB | |
| Wide Dynamic Range (WDR) | True WDR 120 dB | |
| Digital Noise Reduction (2D/3D DNR) | 2D / 3D Digital Noise Reduction | |
| Digital Defog | Supported (Digital Defog) | |
| Pan / Tilt / Rotation | Pan: 8°–360° | Tilt: 0°–68° | Rotation: 10°–360° | |
| Lens | ||
| Lens Type (Fixed / Varifocal / Motorized) | Fixed Lens | |
| Focal Length & Field of View (FOV) | 2.8 mm: H 124.3° / V 61.4° / D 135° 4.0 mm: H 96.1° / V 52.2° / D 113.5° |
|
| Lens Mount | Board Mount | |
| Iris Type | Fixed Iris | |
| Aperture (F-number) | F1.0 Large Aperture | |
| DORI Distance | Detect: Up to 62.1 m Observe: Up to 24.8 m Recognize: Up to 12.4 m Identify: Up to 6.2 m |
|
| Video & Image Processing | ||
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG | |
| Smart Codec | U-code Supported | |
| Main Stream / Sub Stream | Dual Streams Supported | |
| Frame Rate | Up to 30 fps (Resolution dependent) | |
| Supported Resolution | 4MP, 3MP, 1080p, 720p, D1, 640×360 | |
| Bit Rate Control (CBR / VBR) | 128 Kbps – 6144 Kbps | |
| Region of Interest (ROI) | Supported | |
| On-Screen Display (OSD) | Up to 4 OSD Areas | |
| Image Enhancement (BLC / HLC) | BLC & HLC Supported | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 | |
| Gain Control | Automatic | |
| Privacy Masking | Up to 4 Privacy Mask Areas | |
| Image Rotation / Flip | Normal / Vertical / Horizontal / 180° / 90° CW / 90° CCW | |
| Smart & AI Features | ||
| Motion Detection | Supported (Standard & Ultra Motion Detection) | |
| Basic Event Detection | Motion, Tampering, Audio Detection | |
| Advanced AI Analytics (Human / Vehicle / Face – Model Dependent) | Human & Vehicle Detection (Intrusion & Crossline – Lite) | |
| Audio & I/O | ||
| Audio Interface | Built-in Audio Input | |
| Built-in Microphone | Yes | |
| Audio Compression | G.711A / G.711U | |
| Audio Sampling Rate | 8 kHz | |
| Alarm Events | Audio Detection, Tampering Alarm | |
| Reset Button | Supported | |
| Network & Storage | ||
| Network Interface (RJ45) | 1 × RJ45 10/100 Mbps Ethernet | |
| Network Protocols | IPv4/IPv6, TCP/IP, RTSP, HTTP/HTTPS, FTP, SNMP, QoS, SSL/TLS, and more | |
| ONVIF / Interoperability | ONVIF Profile S / G / T | |
| SDK & API Support | Supported | |
| Maximum User Access | Up to 32 Users (Admin & Common User) | |
| Edge Storage (microSD) | microSD Card up to 512 GB | |
| Network Storage (NAS / NVR) | ANR, NAS (NFS) | |
| Software & Access | ||
| Web Browser Support | IE, Chrome, Firefox, Edge (Plugin & Plugin-free) | |
| Management Software | EZStation | |
| Mobile App Support | Uniview Mobile App | |
| Security Features | HTTPS, Strong Password, TLS 1.2, User Authentication, ONVIF Security | |
| Power & Physical Specifications | ||
| Power Supply | DC 12V ±25% / PoE (IEEE 802.3af) | |
| Power Consumption | Maximum 2.0 W | |
| Operating Temperature | -30°C to +60°C | |
| Operating Humidity | ≤ 95% RH (Non-condensing) | |
| Storage Temperature | -30°C to +60°C | |
| Ingress Protection (IP Rating) | IP67 Weatherproof & IK10 Vandal Resistant | |
| Material | Metal + Plastic | |
| Dimensions (L × W × H) | Ø128 × 100 mm | |
| Net Weight | 0.63 kg | |
| Installation Type | Ceiling / Wall Mount (Dome) | |
| Compliance & Warranty | ||
| Certifications | CE, FCC, UL, RoHS, WEEE | |
| Manufacturer Warranty | 1-year warranty | |

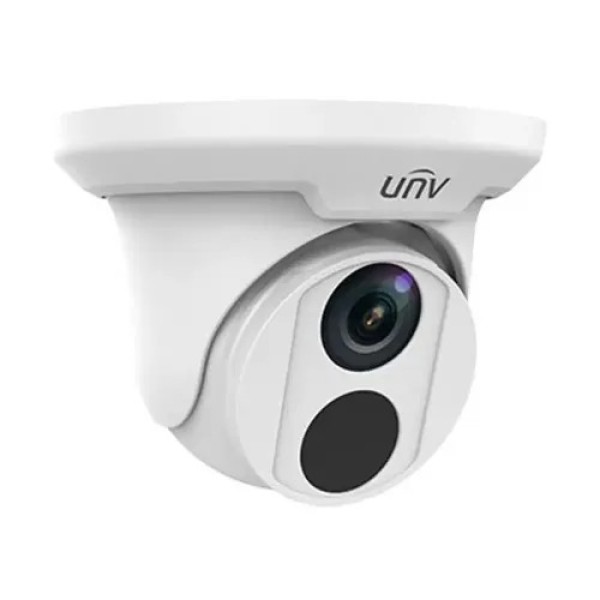

The Uniview IPC3514LE-ADF28K-WP 4MP ColorHunter Wise-ISP Fixed Dome IP Camera is a powerful surveillance solution designed for users who demand crystal-clear color video even in ultra-low light conditions. Built with a premium 1/1.8" CMOS sensor and advanced Wise-ISP technology, this camera delivers professional-grade security performance for homes, offices, retail spaces, and commercial installations. At Touch IT , we bring you this reliable Uniview IP camera to ensure smarter, safer monitoring.
Equipped with a large-aperture F1.0 lens and ColorHunter technology, this 4MP dome IP camera captures vivid, full-color images in extremely dark environments. With a minimum illumination of just 0.0003 Lux, it ensures clear visibility where traditional cameras fail, making it ideal for 24/7 surveillance without relying on additional lighting.
Enjoy sharp and detailed video with up to 4MP resolution and support for multiple frame rates across resolutions. The powerful 120 dB True WDR balances bright and dark areas perfectly, ensuring accurate image details even in challenging lighting conditions such as entrances, parking areas, and storefronts.
The camera is available with 2.8mm or 4.0mm fixed lenses, offering a wide horizontal field of view up to 124.3°. This flexibility allows you to cover larger areas efficiently while maintaining sharp image clarity. Adjustable pan, tilt, and rotation angles make installation easy and precise.
With support for Ultra 265, H.265, H.264, and MJPEG, this Uniview dome camera significantly reduces bandwidth and storage usage without compromising video quality. Features like ROI (Region of Interest), dual streams, U-code, and digital defog ensure optimized performance in real-world scenarios.
The built-in Smart Intrusion Prevention (Lite) technology enhances security by accurately detecting humans and vehicles. Features such as intrusion detection and crossline detection help reduce false alarms, making this camera a smart choice for professional security systems.
A built-in microphone enables audio monitoring for enhanced situational awareness. The camera also supports MicroSD cards up to 512GB, along with ANR and NAS storage options, ensuring reliable recording even during network interruptions.
Designed for demanding environments, this IP camera features IP67 weatherproof and IK10 vandal-resistant protection. It supports PoE (IEEE 802.3af) for simplified installation and consumes only 2.0W of power. Advanced cybersecurity features such as HTTPS encryption, strong password protection, and ONVIF compatibility ensure safe and seamless integration.
At Touch IT , we provide genuine Uniview surveillance solutions backed by expert support and competitive pricing. The Uniview IPC3514LE-ADF28K-WP 4MP ColorHunter Dome IP Camera is an excellent choice for anyone looking for reliable, intelligent, and high-performance security cameras in Bangladesh.
The latest price of Uniview IPC3514LE-ADF28K-WP Dome IP Camera in Bangladesh is 7,900৳. You can buy the Uniview IPC3514LE-ADF28K-WP Dome IP Camera at best price from our website or visit any of our showrooms.
