Call for Price
| Camera System | ||
| Image Sensor | 1/2.8" 2.0 Megapixel Progressive Scan CMOS | |
| Maximum Resolution | 1920 × 1080 (Full HD) | |
| Scanning System | Progressive Scan | |
| Electronic Shutter Speed | Auto / Manual, 1 ~ 1/100,000 s | |
| Day / Night Mode | IR-cut filter with automatic switch (ICR) | |
| Minimum Illumination | Color: 0.02 Lux (F2.0, AGC ON); 0 Lux with IR on | |
| Signal-to-Noise Ratio (S/N) | 52 dB | |
| Wide Dynamic Range (WDR) | DWDR | |
| Digital Noise Reduction (2D/3D DNR) | 2D / 3D Digital Noise Reduction | |
| Digital Defog | Digital Defog Supported | |
| Pan / Tilt / Rotation | Pan: 0° ~ 360°; Tilt: 0° ~ 80°; Rotation: 0° ~ 360° | |
| Infrared & Illumination | ||
| IR Type | Infrared LED | |
| IR Distance | Up to 30 m (98 ft) | |
| IR Control (Auto / Manual) | Auto / Manual | |
| IR Wavelength | 850 nm | |
| Lens | ||
| Lens Type (Fixed / Varifocal / Motorized) | Fixed Lens | |
| Focal Length & Field of View (FOV) | 2.8 mm @ F2.0 Horizontal: 106.7° | Vertical: 57.1° | Diagonal: 115.7° |
|
| Lens Mount | Board Lens (Integrated) | |
| Iris Type | Fixed Iris | |
| Aperture (F-number) | F2.0 | |
| DORI Distance | 2.8 mm: Detect 43.4 m | Observe 17.4 m | Recognize 8.7 m | Identify 4.3 m 4.0 mm: Detect 62.1 m | Observe 24.8 m | Recognize 12.4 m | Identify 6.2 m |
|
| Video & Image Processing | ||
| Video Compression | Ultra 265, H.265, H.264 | |
| Smart Codec | U-code Supported | |
| Main Stream / Sub Stream | Dual Streams Supported | |
| Frame Rate | Main Stream: 1080P / 720P @ up to 25 fps Sub Stream: D1 / 2CIF / CIF / 640×360 @ up to 25 fps |
|
| Supported Resolution | 1080P, 720P, D1, 2CIF, CIF, 640×360 | |
| Bit Rate Control (CBR / VBR) | CBR / VBR | |
| Region of Interest (ROI) | Up to 8 Configurable Areas | |
| On-Screen Display (OSD) | Up to 4 OSDs | |
| Image Enhancement (BLC / HLC) | BLC and HLC Supported | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 | |
| Gain Control | Automatic Gain Control (AGC) | |
| Privacy Masking | Up to 4 Areas | |
| Image Rotation / Flip | Normal / Vertical / Horizontal / 180° | |
| Smart & AI Features | ||
| Motion Detection | Supported | |
| Basic Event Detection | Motion Detection, Audio Detection | |
| Audio & I/O | ||
| Built-in Microphone | Supported | |
| Audio Compression | G.711A, G.711U | |
| Audio Sampling Rate | 8 kHz | |
| Network & Storage | ||
| Network Interface (RJ45) | 1 × RJ45 10M / 100M Ethernet | |
| Network Protocols | IPv4, TCP, UDP, DHCP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, NTP, UPnP, QoS, RTMP | |
| ONVIF / Interoperability | ONVIF Profile S, Profile T | |
| SDK & API Support | API Supported | |
| Maximum User Access | Up to 32 Users (Administrator & Common User) | |
| Network Storage (NAS / NVR) | Supported via NVR | |
| Software & Access | ||
| Web Browser Support | Chrome 57+, Firefox 58+, Edge 16+ (Plugin-Free Live View) | |
| Management Software | EZStation | |
| Mobile App Support | UNV-Link, UNV-Link Pro | |
| Security Features | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP / HTTP Authentication | |
| Power & Physical Specifications | ||
| Power Supply | PoE (IEEE 802.3af) | |
| Installation Type | Ceiling / Wall Mount (Dome Type) | |
| Compliance & Warranty | ||
| Certifications | ONVIF Compliant | |
| Manufacturer Warranty | 1 Year | |

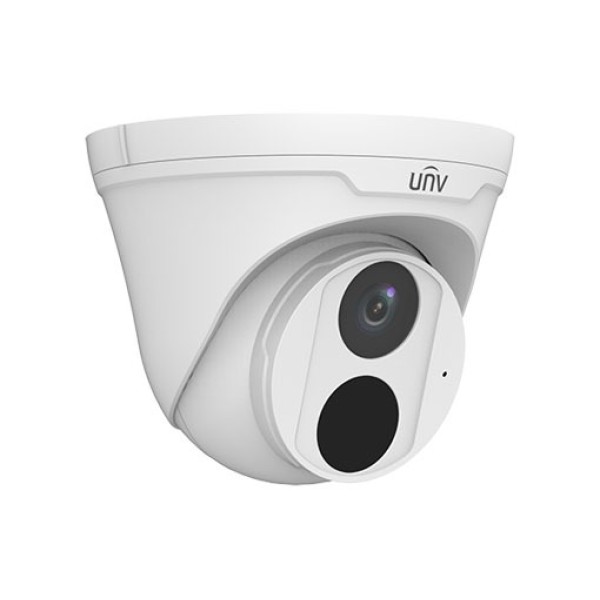

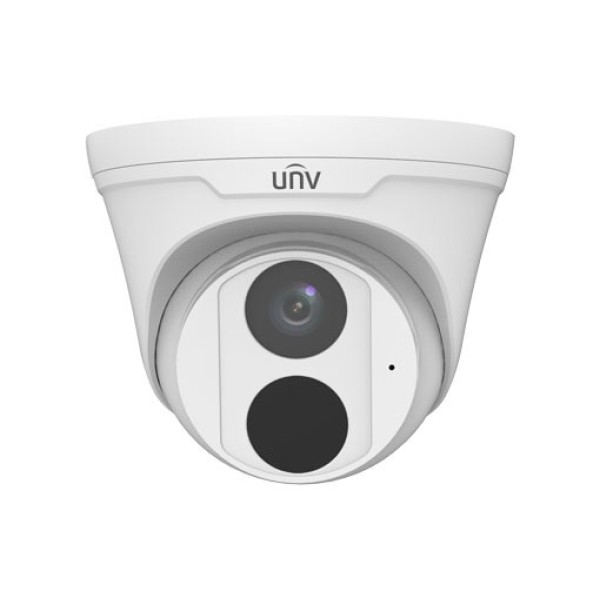

The Uniview IPC3612LB-ASF28-EZG HD IP Camera is a smart and dependable IP surveillance solution for homes, offices, retail stores, and commercial environments. Built with a high-quality 1/2.7" CMOS sensor, this dome camera delivers sharp Full HD video, efficient compression, and stable performance for round-the-clock security.
Clear Imaging • Smart Night Protection • Reliable IP Security — these three core strengths make this camera a practical choice for modern CCTV installations.
Featuring a high-performance CMOS sensor, this Uniview IPC3612LB-ASF28-EZG HD IP Camera records at 2MP (1920×1080) resolution with up to 30fps for smooth and detailed video. It also supports 720P resolution, ensuring flexible recording options while maintaining clear visuals for monitoring and identification.
The Uniview IPC3612LB-ASF28-EZG HD IP Camera supports Ultra 265, H.265, H.264, and MJPEG compression technologies, helping reduce bandwidth usage and storage costs without compromising image quality. With 120dB true Wide Dynamic Range (WDR), it delivers balanced and clear images even in strong backlight or high-contrast lighting conditions.
Equipped with Smart IR technology, the Uniview IPC3612LB-ASF28-EZG HD IP Camera provides up to 30 meters (98 ft) of infrared illumination for clear night-time monitoring. The built-in microphone adds audio recording capability, enhancing overall security and situational awareness.
The 9:16 Corridor Mode makes this Uniview IPC3612LB-ASF28-EZG HD IP Camera ideal for hallways, staircases, and narrow areas. Its 3-axis adjustable design allows precise positioning during installation, while PoE (Power over Ethernet) support simplifies setup by using a single cable for power and data.
Designed for both indoor and outdoor use, the camera comes with IP67-rated protection, ensuring resistance to dust and water. It also supports up to 128GB micro SD card storage, allowing local recording as a backup or standalone solution.
At Touch IT, we offer genuine Uniview IPC3612LB-ASF28-EZG HD IP Camera with competitive pricing, expert consultation, and reliable after-sales support. Choosing Touch IT means investing in authentic products, professional guidance, and long-term peace of mind for your security needs. Secure your space with confidence using the Uniview IPC3612LB-ASF28-EZG 2MP Dome HD IP Camera — a reliable, feature-rich, and cost-effective IP camera solution, available now at Touch IT.
The latest price of Uniview IPC3612LB-ASF28-EZG HD IP Camera in Bangladesh is 0৳. You can buy the Uniview IPC3612LB-ASF28-EZG HD IP Camera at best price from our website or visit any of our showrooms.
