In Stock
| Interface | ||
| Ethernet | 4 × 10/100Mbps PoE Ports, 2 × 10/100Mbps RJ45 Uplink Ports | |
| Power | AC Input 100–240V | |
| Performance | ||
| Bandwidth | 1.2 Gbps | |
| MAC Address | 1K | |
| Packet Buffer | 448K | |
| Throughput | 0.8928 Mpps | |
| Transfer Mode | Store and Forward | |
| Standard | ||
| Network Protocol | IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3x (Flow Control) | |
| PoE Protocol | IEEE 802.3af (15.4W), IEEE 802.3at (30W) PoE Output Voltage: DC 52V PoE Power Supply Core: 1/2+; 3/6− |
|
| Network Medium | 10Base-T: Cat3, Cat4, Cat5 or above UTP/STP (≤100m) 100Base-TX: Cat5 or above UTP/STP (≤100m) |
|
| Function | ||
| LED Indicators | PWR (Power Supply), Mode (DIP), Ports 1–6 Green (Link & Data), POE Max (Power) | |
| POE LED Buttons | Dual-color LED: Default Green (Link/Data), Yellow (PoE Status) | |
| PWR | On: Powered On Off: Powered Off |
|
| DIP Switch | ||
| DIP Switch | VLAN Mode: PoE ports (1–4) are isolated and communicate only with uplink ports (5–6); PoE Watchdog enabled Default Mode: All ports communicate freely; 10/100Mbps adaptive; PoE Watchdog disabled Extend Mode: Ports 1–4 forced to 10Mbps with transmission distance up to 220m; PoE Watchdog enabled |
|
| Physical Specifications | ||
| Dimension | Product Dimensions: 200 × 118 × 44 mm Package Dimensions: 245 × 190 × 60 mm |
|
| POE power | Maximum PoE Power Output: 55W | |
| Power | Mainboard Power Consumption: Maximum 10W | |
| Power Voltage | Input Voltage: AC 100–240V Power Supply: 52V / 1.25A |
|
| Weight | Net Weight: 0.54kg Gross Weight: 0.88kg |
|
| Warranty | ||
| Warranty | 1-Year | |

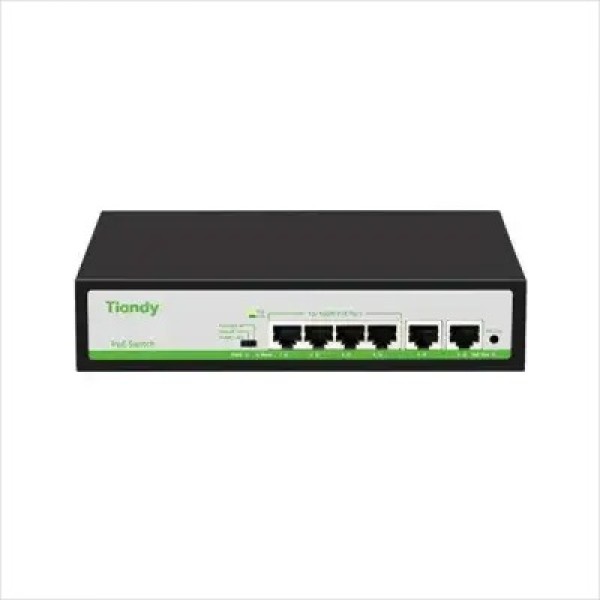

The Tiandy TC-P3S06 4CH PoE Switch is a compact, reliable, and cost-effective networking solution designed for CCTV surveillance and IP camera installations. Built for smooth power and data delivery over a single cable, this PoE switch simplifies installation while ensuring stable and secure network performance for small to medium projects.
Designed for professional surveillance environments, the Tiandy TC-P3S06 4CH PoE Switch delivers a 1.2Gbps switching bandwidth with a throughput of 0.8928Mpps, ensuring smooth video streaming and reliable data transfer. It supports IEEE 802.3af (15.4W) and IEEE 802.3at (30W) PoE standards, providing stable power to IP cameras, access points, and other PoE-enabled devices without the need for separate power supplies.
Equipped with 4× 10/100Mbps PoE ports and 2× 10/100Mbps RJ45 uplink ports, this Tiandy TC-P3S06 4CH PoE Switch allows seamless integration with NVRs, routers, and core networks. The built-in DIP switch enables three intelligent modes—Default Mode for standard networking, VLAN Mode for enhanced security through port isolation, and Extend Mode supporting long-distance transmission up to 220 meters. The integrated PoE Watchdog (AI Mode) automatically reboots unresponsive cameras to maintain uninterrupted surveillance.
The Tiandy TC-P3S06 4CH PoE Switch is engineered for durability and long-term reliability. It meets industrial EMS standards including ESD and surge protection, ensuring stable operation in harsh environments. With a working temperature range of -10°C to 50°C and clear LED indicators for power, PoE status, and data transmission, this switch is ideal for both indoor and demanding installations.
Choosing Touch IT means choosing authenticity, expert support, and dependable after-sales service. We provide 100% genuine Tiandy TC-P3S06 4CH PoE Switch with a 1-year brand warranty, competitive pricing, and fast nationwide delivery. Whether you are a CCTV installer, system integrator, or business owner, Touch IT ensures you get trusted networking solutions backed by professional guidance and reliable service.
The latest price of Tiandy TC-P3S06 4CH PoE Switch in Bangladesh is 2,500৳. You can buy the Tiandy TC-P3S06 4CH PoE Switch at best price from our website or visit any of our showrooms.
