| Interface | ||
| Ethernet | 8 × Gigabit PoE Ethernet Ports, 2 × Gigabit Uplink Ethernet Ports | |
| Power | AC Input (100–240V, 50–60Hz) | |
| Performance | ||
| Bandwidth | 20Gbps | |
| MAC Address | 2K | |
| Packet Buffer | 448K | |
| Throughput | 14.88Mpps | |
| Transfer Mode | Store & Forward | |
| Standard | ||
| Network Protocol | IEEE 802.3 (10Base-T) IEEE 802.3u (100Base-TX) IEEE 802.3ab (1000Base-TX) IEEE 802.3x (Flow Control) |
|
| PoE Protocol | IEEE 802.3af (15.4W) IEEE 802.3at (30W) PoE Port Output Voltage: DC 52V PoE Power Supply Core: 1/2+, 3/6 |
|
| Network Medium | 10Base-T: Cat3, Cat4, Cat5 or above UTP (≤100m) 100Base-TX: Cat5 or above UTP (≤100m) 1000Base-TX: Cat5 or above UTP (≤100m) |
|
| Function | ||
| LED Indicators | PWR (Power), Ports 1–10 Green Light (Link & Data) | |
| PWR | On: Powered On Off: Powered Off PoE LED Buttons Dual-color LED selection: • Default Green – Link/Data • Yellow – PoE Status |
|
| DIP Switch | ||
| DIP Switch | Ports 1–8 are isolated and communicate only with the uplink interface (PoE watchdog enabled) | |
| Physical Specifications | ||
| Dimension | Product Dimension: 220 × 161 × 44 mm Package Dimension: 315 × 215 × 85 mm |
|
| Power Voltage | Input Voltage: AC 100–240V, 50–60Hz Supply Power: 52V / 2.3A Mainboard Power Consumption: ≤10W PoE Power Budget: ≤110W |
|
| Weight | Net Weight: 0.88 kg Gross Weight: 1.38 kg |
|
| Warranty | ||
| Warranty | 1 Year | |

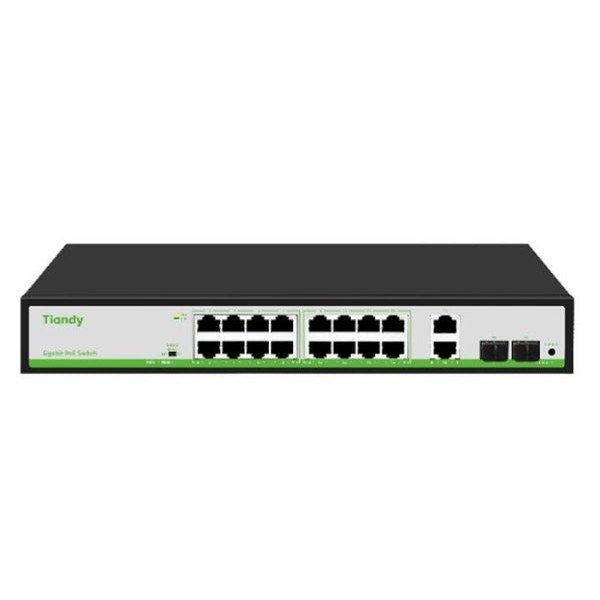

The Tiandy TC-P3S020 Network PoE Switch is a powerful and reliable networking solution designed for modern IP surveillance and enterprise networks. It delivers stable PoE power and high-speed data over a single cable, making installations cleaner, faster, and more cost-effective. Ideal for CCTV systems, IP cameras, and structured networks, this switch ensures smooth performance with minimal setup.
This Tiandy TC-P3S020 Network PoE Switch features 16 x 10/100/1000M PoE ports, allowing you to power multiple IP cameras, access points, and network devices without extra power adapters. Fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards, it ensures wide compatibility and reliable connectivity. All Ethernet ports are self-adaptive, automatically adjusting speeds for optimal network efficiency.
To handle high-bandwidth requirements, the Tiandy TC-P3S020 includes 2 Gigabit uplink ports and 2 Gigabit SFP ports. These ports provide faster data transmission to NVRs or core switches, reduce network congestion, and support fiber connectivity for long-distance deployments—perfect for large-scale CCTV and enterprise networks.
The built-in DIP switch supports Extend mode, where the AI feature automatically sets ports 9–16 to 10Mbps for long-distance transmission. The Tiandy TC-P3S020 Network PoE Switch also supports PoE priority from port 1 to port 16, ensuring critical devices stay powered during high-load situations. With its zero-configuration design, the switch automatically supplies power to adaptive devices, saving time and reducing installation errors.
Designed for durability, this Tiandy TC-P3S020 Network PoE Switch supports 4KV lightning surge protection and advanced ESD protection (8KV air, 6KV contact), keeping your network safe from electrical disturbances. Flow control based on IEEE 802.3X standards ensures smooth data transmission, while front panel LED indicators help monitor status and simplify fault analysis.
When you buy from Touch IT, you get 100% genuine Tiandy TC-P3S020 Network PoE Switch, competitive pricing, and expert support you can trust. We specialize in CCTV and networking solutions, ensuring you receive the right product with reliable after-sales service. Choose Touch IT for quality assurance, professional guidance, and a smooth purchasing experience.
The latest price of Tiandy TC-P3S020 Network PoE Switch in Bangladesh is 14,000৳. You can buy the Tiandy TC-P3S020 Network PoE Switch at best price from our website or visit any of our showrooms.
