In Stock
| Interface | ||
| Ethernet | 16 × 10/100M PoE Ports, 2 × 1000M Gigabit Ethernet Uplink Ports, 1 × 1000M SFP Port | |
| Power | AC Input: 100–240V, 50–60Hz | |
| Performance | ||
| Bandwidth | 9.2 Gbps | |
| MAC Address | 2K | |
| Packet Buffer | 3 Mbit | |
| Throughput | 6.84 Mpps | |
| Transfer Mode | Store and Forward | |
| Standard | ||
| Network Protocol | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3x (Flow Control), IEEE 802.3z (Gigabit Fiber Standard) | |
| PoE Protocol | IEEE 802.3af (15.4W), IEEE 802.3at (30W) PoE Output Voltage: DC 52V PoE Power Supply Core: 1/2+, 3/6− |
|
| Network Medium | 10BASE-T: Cat3, Cat4, Cat5 UTP (≤100m) 100BASE-TX: Cat5 or higher UTP (≤100m) 1000BASE-TX: Cat5 or higher UTP/STP (≤100m) |
|
| Function | ||
| LED Indicators | PWR (Power Indicator), Mode (Dial Indicator), Ports 1–19 Green (Link & Data), PoE Max (Power Display) | |
| POE LED Buttons | Dual-Color LED: Green for Link/Data, Yellow for PoE Status | |
| PWR | On: Powered On Off: Powered Off |
|
| DIP Switch | ||
| DIP Switch | Three-Gear Intelligent DIP Switch supporting Default, VLAN, and Extend Modes | |
| Physical Specifications | ||
| Dimension | Product Dimension: 320 × 207 × 45 mm Package Dimension: 370 × 290 × 85 mm |
|
| POE power | Maximum PoE Output Power: 180W | |
| Power | Non-PoE Board Power Consumption: Maximum 6W | |
| Power Voltage | Input Voltage: AC 100–240V, 50–60Hz Power Supply: DC 52V / 3.84A |
|
| Weight | Net Weight: 1.61 kg Gross Weight: 2.14 kg |
|
| Warranty | ||
| Warranty | 1 Year | |

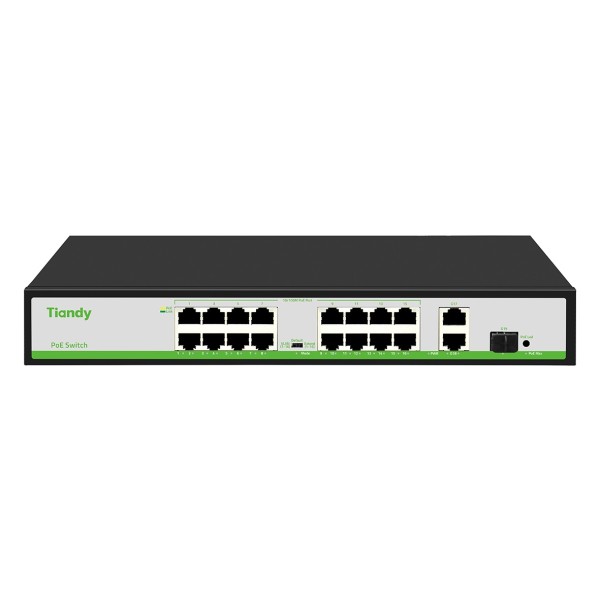

The Tiandy TC-P3S019 16CH PoE Switch is a reliable, high-performance networking solution designed for IP surveillance, CCTV systems, and enterprise networks. Built for stability and efficiency, this PoE switch delivers strong power output, smooth data transmission, and intelligent control—making it a smart choice for professional security installations and growing network environments.
This Tiandy TC-P3S019 16CH PoE Switch features 16×10/100Mbps PoE ports, 2×1000Mbps Gigabit Ethernet uplink ports, and 1×1000Mbps SFP port, ensuring fast, stable data flow across your entire network. It fully complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards, making it compatible with a wide range of IP cameras, NVRs, and network devices. With auto-adaptive Ethernet ports, setup is simple and hassle-free.
The Tiandy TC-P3S019 16CH PoE Switch is equipped with a three-gear intelligent DIP switch that supports Default, VLAN, and Extend modes. In Extend mode, PoE ports can transmit data over longer distances by forcing ports 1–16 to 10Mbps while automatically activating AI mode. This makes it ideal for large-scale CCTV deployments where cameras are installed far from the control room.
Designed for long-term reliability, this Tiandy TC-P3S019 16CH PoE Switch supports PoE priority management (ports 1–16 enabled by default), ensuring critical devices stay powered during overload conditions. It uses IEEE 802.3x flow control for full-duplex communication and back pressure for half-duplex, delivering smooth and stable network performance. The zero-configuration design automatically supplies power to adaptive devices, saving installation time.
For added durability, the switch supports lightning surge protection (4KV common mode, 2KV differential mode) and ESD protection (8KV air, 6KV contact – Level B). Panel indicator lights allow real-time monitoring of working status, helping technicians quickly identify and resolve network issues. Backed by a 1-year warranty, it offers peace of mind for professional deployments.
When you choose Touch IT, you’re getting more than just a Tiandy TC-P3S019 16CH PoE Switch. We provide 100% genuine Tiandy products, competitive pricing, expert guidance, and dependable after-sales support. Whether you’re building a new CCTV system or upgrading your network infrastructure, Touch IT ensures trusted quality, fast availability, and solutions that work—right when you need them.
The latest price of Tiandy TC-P3S019 16CH PoE Switch in Bangladesh is 12,000৳. You can buy the Tiandy TC-P3S019 16CH PoE Switch at best price from our website or visit any of our showrooms.
