| Technical Specifications | ||
| Technology Type | Biometric Access Control Terminal (Face Recognition, Fingerprint, Card & PIN) | |
| Access Method (Card, Fingerprint, Face Recognition, PIN) | Face Recognition, Fingerprint, EM Card, PIN | |
| User Capacity | 500 Faces, 1,000 Fingerprints, 1,000 Cards | |
| Transaction Log Capacity | 100,000 Events | |
| Identification Speed | < 0.2 seconds per user | |
| Communication Interface | RJ-45 (10/100 Mbps), Wi-Fi (2.4 GHz, 802.11b/g/n), USB | |
| Operating Voltage | 12 VDC | |
| Power Consumption | ≤ 6 W | |
| Backup Battery (Yes/No) | Yes (Battery supported in bracket) | |
| Operating Temperature | -10°C to 55°C | |
| Operating Humidity | 0% to 90% (Non-condensing) | |
| Physical Features | ||
| Display Type | 2.4-inch LCD (320 × 240 resolution) | |
| Keypad Type | Touch Keypad (PIN supported via interface) | |
| Tamper Alarm | Yes (Supports Tamper Input) | |
| Installation & Integration | ||
| Mounting Type | Wall Mount (Typical for access control terminals) | |
| Installation Requirements | 12V DC power supply, network connection (LAN or Wi-Fi), door lock integration, exit button, door contact | |
| Supported Door Types (Glass, Wood, Metal) | Glass, Wooden, and Metal Doors (with compatible locking system) | |
| Integration Support (e.g., Fire Alarm, CCTV) | Supports Access Control Systems and Time Attendance; compatible with security systems via ISAPI & ISUP 5.0 protocols | |
| Compatible Software | Web Client Configuration Interface | |
| Third-Party Integration | Yes (via ISAPI and ISUP 5.0 protocols) | |
| Warranty Information | ||
| Warranty | 1 Year | |
Looking for a fast, secure, and reliable biometric access control system? The Hikvision DS-K1T320EFWX-B Recognition Access Control is designed to deliver intelligent security and efficient attendance management for modern businesses. With advanced face recognition, fingerprint, card, and PIN authentication, along with built-in WiFi and anti-spoofing technology, this device ensures accurate identification, enhanced security, and seamless operation—making it an ideal choice for offices, factories, and commercial spaces.
The Hikvision DS-K1T320EFWX-B Recognition Access Control offers multiple access methods including face recognition, fingerprint, EM card, and PIN to provide flexible and secure entry control. With storage capacity for up to 500 faces, 1,000 fingerprints, 1,000 cards, and 100,000 event logs, it is perfectly suited for small to medium-sized organizations. Its ultra-fast face recognition speed of less than 0.2 seconds per user ensures smooth and efficient operation during peak hours.
Equipped with a high-quality 2MP camera and intelligent face anti-spoofing feature, this Hikvision DS-K1T320EFWX-B Recognition Access Control prevents unauthorized access using photos or videos. The optimized field of view (HFOV 43° and VFOV 25°) enhances detection accuracy, ensuring reliable performance in real-world environments. This makes it an excellent solution for businesses prioritizing secure biometric attendance and access control systems.
This Hikvision DS-K1T320EFWX-B Recognition Access Control supports both wired (RJ-45) and WiFi (2.4GHz 802.11 b/g/n) connectivity, allowing easy installation and real-time data synchronization. It is compatible with ISAPI and ISUP 5.0 protocols and can be configured through a user-friendly web client. With built-in access controller functionality and interfaces like door control, exit button, USB, and tamper alarm, it integrates seamlessly with door locks, CCTV systems, and other security solutions.

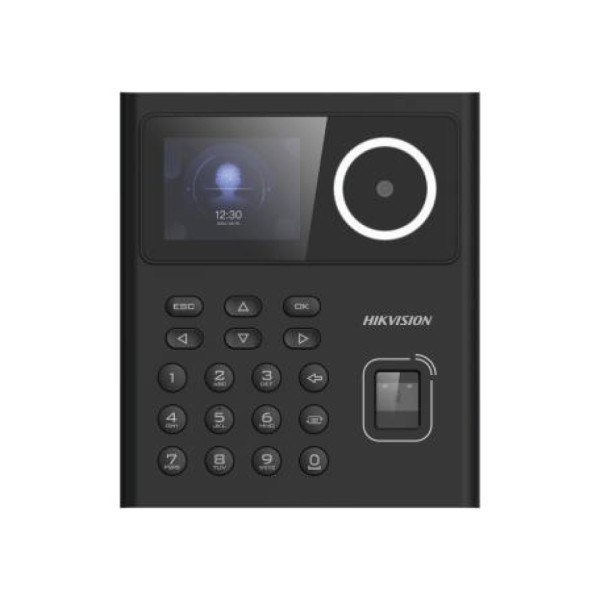

The 2.4-inch LCD display provides a clear and intuitive interface for smooth user interaction. Supporting multiple languages including English, Arabic, Japanese, and more, it is suitable for diverse work environments. Designed for durability, it operates efficiently within a temperature range of -10°C to 55°C and humidity up to 90%. Its low power consumption (≤6W) ensures energy efficiency while maintaining consistent performance.
