| Main Features | ||
| System | Embedded processor with touch button interface; supports UDP, TCP, IPv4, RTSP, SIP, P2P, RTP; OSDP supported; interoperable with CGI and ONVIF; SDK/API available. | |
| Face Capacity | 6,000 faces | |
| Fingerprint Capacity | 6,000 finger | |
| ID Card Capacity | 10,000 cards | |
| Record / Log Capacity | 300,000 records | |
| CPU | Embedded processor | |
| Display | 4.3" LCD capacitive touchscreen, resolution 272 (H) × 480 (V) | |
| Camera | 2-MP CMOS HD dual-lens camera with DWDR and Auto IR compensation | |
| Authentication Method | Face, fingerprint, ID card, password, QR code, remote unlock, and combination authentication | |
| Card | ID cards supported; reading distance 0–3 cm | |
| Fingerprint Recognition | 1:N verification | |
| Standard Functions | Unlock modes, multi-user authentication, real-time monitoring, period & holiday scheduling, remote verification, restricted/trusted user lists, capture function, auto-registration, web configuration, anti-passback, tamper protection, duress alarm, intrusion detection, illegal card threshold, duress fingerprint, alarm linkage, door sensor timeout. | |
| Communication | RS-485, Wiegand, USB, Ethernet (RJ45) | |
| Wired network | 1 × RJ-45 10/100 Mbps Ethernet port | |
| Algorithms | Face algorithm with DWDR; fingerprint 1:N recognition; multi-factor biometric logic | |
| Wiegand Signal | 1 Wiegand interface | |
| Access Control Interface | • Exit button • Door status detection • Lock control • Alarm input & output • RS-485 card reader • Wiegand reader support |
|
| Facial Recognition Speed | 0.2 s | |
| Facial Recognition Distance | 0.3 m – 1.5 m (0.98 ft – 4.92 ft) | |
| Face anti-spoofing | Yes (dual-lens IR-assisted camera) | |
| Others | • Supports auto registration • Supports remote unlock • Supports real-time monitoring • Includes wall mount bracket |
|
| Physical Specification | ||
| Environment | Indoor & outdoor use; operating altitude 0–1,300 m | |
| Power Supply | 12 VDC, 1.5 A (adapter included) | |
| Power consumption | ≤ 12 W | |
| Working temperature | –30 °C to +60 °C (–22 °F to +140 °F) | |
| Working humidity | 0%–90% RH (non-condensing) | |
| Built-in access controller | Yes (includes lock, alarm, door sensor, exit input) | |
| Supplement light | Auto IR illumination | |
| Languages | English | |
| Platform/ Software | SmartPSS Lite | |
| Dimension | 180.1 mm × 90.1 mm × 27.0 mm (7.09" × 3.55" × 1.06") | |
| Weight | Gross weight: 0.70 kg (1.54 lb) | |
| Standard Firmware Functions | Anti-passback, duress alarm, tamper alarm, intrusion, threshold alarms, real-time monitoring, user management, trusted/restricted list, multi-factor auth, remote verification. | |
| SDK | Yes (API/SDK supported) | |
| Protection Rating | IP65 weatherproof | |
| Audio | Voice prompt + buzzer | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

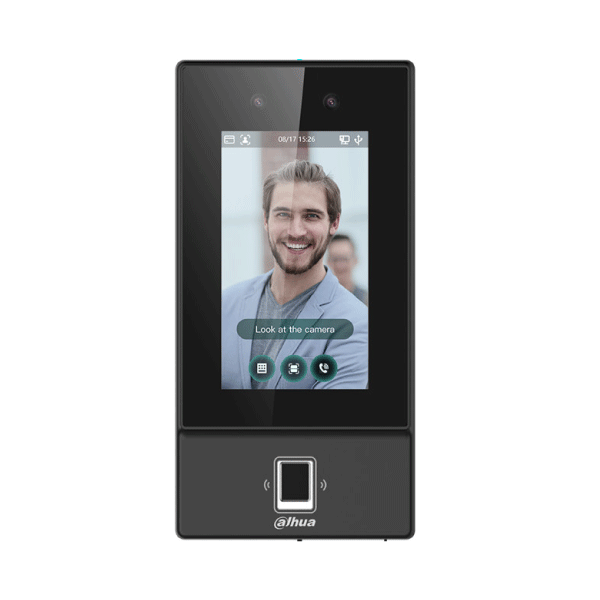

The Dahua ASI6214S-D Face Recognition Access Control Terminal is an advanced biometric security device designed for modern offices, commercial buildings, factories, financial institutions, and high-security environments across Bangladesh. Featuring a powerful embedded processor, dual-lens facial recognition camera, multi-factor authentication, and robust IP65 protection, this Dahua access control terminal delivers unmatched security, reliability, and convenience. With support for fingerprints, face recognition, ID cards, passwords, and QR codes, it offers a complete solution for organizations seeking next-generation access management with high accuracy and rapid authentication.
The ASI6214S-D comes with a 4.3-inch capacitive glass touchscreen featuring a crisp 272 × 480 resolution. This intuitive display allows users to navigate menus, view instructions, and complete authentication processes quickly. Designed with durability and clarity in mind, the touchscreen performs exceptionally well in busy access points such as office receptions, turnstiles, and restricted areas.
Equipped with a 2MP wide-angle dual-lens camera, the terminal supports high-accuracy biometric identification even in challenging lighting conditions. The integrated IR illumination and DWDR (Digital Wide Dynamic Range) ensure the device can recognize users in both bright and low-light environments. This makes the ASI6214S-D ideal for indoor and outdoor installations, including shaded walkways, building entrances, and factory gates.
This Dahua access controller supports seven authentication methods:
• Face recognition • Fingerprint verification • ID/IC card • Password • QR code access • Remote unlocking • Multi-factor combination unlock
This versatility makes it suitable for organizations that require strict access policies with optional two-step verification for sensitive zones.
The ASI6214S-D is engineered for high-traffic environments with support for:
• 6,000 users • 6,000 faces • 6,000 fingerprints • 10,000 cards • 6,000 passwords • 300,000 event records
This extensive capacity ensures seamless operation in corporate offices, schools, factories, government institutions, and commercial complexes.
The device delivers a 99.9% face recognition accuracy rate with rapid 0.2-second identification. It recognizes users from a distance of 0.3–1.5 meters, supporting height ranges from 1.1 m to 2.0 m.
Mask detection and safety helmet detection add an extra layer of compliance and workplace safety—perfect for industrial sites and construction areas.
The Dahua ASI6214S-D includes built-in tamper alarm, anti-passback, duress alarm, intrusion alerts, and illegal card detection, ensuring robust protection against unauthorized entry attempts. The terminal also supports optional security module expansion for enhanced hardware protection.
For modern visitor management, the ASI6214S-D supports:
• Temporary visitor QR codes • Doorbell function with video call capability • Remote door unlock • Mobile alarm notifications via app
This ensures smooth access control for guests, employees, and service personnel.
The device supports multiple communication protocols including TCP/IP, SIP, RTSP, RTP, ONVIF, CGI, and UDP, ensuring easy integration with third-party systems, VMS platforms, and enterprise networks. Administrators can configure and manage the device using the built-in web interface, making deployment simple and efficient.
Designed to withstand harsh weather, the device is rated IP65, making it suitable for outdoor access points and dusty or humid environments. With an operating temperature range of –30°C to +60°C, the ASI6214S-D performs reliably across all regions of Bangladesh.
Purchasing the Dahua ASI6214S-D Face Recognition Access Control Terminal from Touch IT ensures you receive a 100% genuine Dahua product with expert consultation, professional installation, and comprehensive support. As one of Bangladesh’s trusted access control and security system providers, Touch IT offers competitive pricing, fast delivery, and tailored solutions for corporate, industrial, retail, and government clients.
If you are looking for a reliable, enterprise-grade Dahua access control terminal with advanced biometric features, Touch IT provides the best value and long-term security performance.
