Call for Price
| Main Features | ||
| System | Embedded processor; mechanical buttons; supports IPv4, UDP, P2P, IPv6, TCP; ONVIF & CGI interoperability; SDK & API supported; T9 input. | |
| Fingerprint Capacity | 3,000 fingerprints | |
| ID Card Capacity | 3,000 ID cards | |
| Record / Log Capacity | 100,000 attendance records | |
| Display | 2.4-inch non-touch LCD display, 240 × 320 resolution | |
| Authentication Method | Fingerprint, ID card, password | |
| Card | ID card; 125 kHz AM modulation; reading distance: 3 cm | |
| Fingerprint Sensor | Optical fingerprint sensor | |
| Fingerprint Recognition | 1:N mode; comparison time 1.5 s; recognition time 0.5 s | |
| Standard Functions | Auto registration, restricted/trusted list, schedule/shift setting, attendance statistics, multi-department support, ringtone, duress alarm, intrusion alarm, door sensor timeout, illegal card detection, USB data export, network update. | |
| Communication | USB 2.0 port; Ethernet network; supports ONVIF, CGI, SDK, API. | |
| Wired network | 1 × RJ-45 10/100 Mbps Ethernet port | |
| Access Control Interface | • Exit button • Door status detection • Lock control • Alarm triggers |
|
| Others | Auto/Manual/Fixed attendance modes; 20 departments; 24 work shifts; USB attendance export; ring tone option. | |
| Physical Specification | ||
| Environment | Indoor installation required | |
| Power Supply | 12 VDC, 1 A (adapter included); built-in lithium battery | |
| Power consumption | ≤ 6 W | |
| Working temperature | –10 °C to +55 °C (14 °F to 131 °F) | |
| Working humidity | 5%–95% RH (non-condensing) | |
| Backup Battery | Built-in lithium battery | |
| Built-in access controller | Yes (supports lock, exit button, door sensor, alarms) | |
| Languages | English | |
| Platform/ Software | SmartPSS Lite | |
| Dimension | 181.6 mm × 135.6 mm × 32.7 mm (H × W × D) | |
| Weight | 0.61 kg (1.34 lb) | |
| Standard Firmware Functions | Attendance check modes, attendance statistics, schedules, departments, duress alarm, intrusion alarm, door timeout, USB export, user type management. | |
| SDK | Yes | |
| API Functionalities | Supports device configuration, data synchronization, record extraction, and remote management through API. | |
| Device & API Management Cloud Platform | 1 Year | |

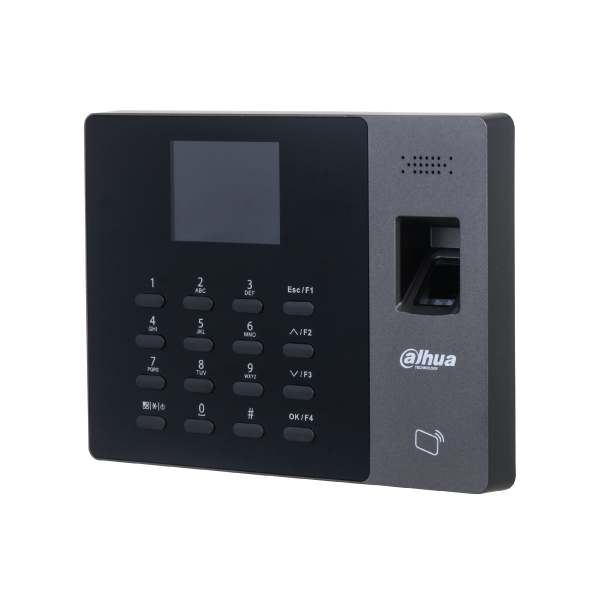

The Dahua ASA2212GL-D Fingerprint Time Attendance Terminal is a powerful and reliable biometric attendance solution designed for offices, factories, shops, schools, and enterprises in Bangladesh. With a 2.4-inch LCD display, optical fingerprint sensor, built-in battery backup, and fast processing capability, this device ensures smooth and secure attendance tracking across all work environments. It supports 3,000 users, 3,000 fingerprints, 3,000 cards, and up to 100,000 attendance logs—making it ideal for small to large organizations looking for accurate and efficient employee time management.
The ASA2212GL-D offers outstanding biometric performance with an optical fingerprint sensor that delivers highly accurate recognition. It supports 1:N verification mode with recognition speeds as fast as 0.5 seconds and comparison speeds of 1.5 seconds. This ensures quick attendance check-ins even during peak hours when large numbers of employees clock in simultaneously.
This Dahua attendance terminal supports card-based attendance, password entry, and fingerprint identification. Users can choose the authentication method that best suits their workflow, providing enhanced flexibility and security. The device is designed to support a wide range of attendance modes including Auto Mode, Manual Mode, and Fixed Mode.
To ensure uninterrupted attendance recording even during power failures, the ASA2212GL-D comes with a built-in lithium battery capable of providing up to 3 hours of continuous operation. This makes it a highly dependable attendance solution for businesses in Bangladesh where power outages may occur.
The device supports up to 20 departments and 24 work shifts, giving organizations the ability to define detailed schedules, working hours, and overtime periods. Attendance statistics are stored directly on the device, enabling HR teams to manage employee time records with ease.
Administrators can configure the device through its built-in web interface, accessible via both PC and mobile browser. It supports exporting attendance logs, user details, shift schedules, and department data through a USB flash drive—making data backup and HR reporting extremely simple.
The Dahua ASA2212GL-D ensures seamless communication through TCP/IP connectivity, allowing central attendance monitoring across multiple branches. It also supports auto registration, P2P connection, IPv4/IPv6 protocols, and DHCP configuration for flexible network deployment.
The attendance terminal includes duress alarms, illegal card detection, intrusion alerts, and door sensor timeout notifications. These security protections ensure safe and compliant access monitoring alongside attendance management.
Constructed with high-strength PC + ABS material, the ASA2212GL-D is designed for long-term indoor use. Its compact dimensions (181.6 mm × 135.6 mm × 32.7 mm) allow for easy wall mounting in offices, receptions, and HR departments. The device also operates within a wide temperature range, making it stable and resilient in different environments.
Touch IT is a trusted supplier of Dahua biometric and access control systems in Bangladesh, providing genuine products, expert configuration, and dedicated after-sales support. When you purchase the Dahua ASA2212GL-D Time Attendance Terminal from Touch IT, you receive full warranty coverage, professional installation assistance, and the most competitive price for your business. Touch IT ensures reliable delivery, corporate project support, and superior customer service—making it the best place to buy Dahua attendance machines in Bangladesh.
The latest price of Dahua ASA2212GL-D Time Attendance Terminal in Bangladesh is 0৳. You can buy the Dahua ASA2212GL-D Time Attendance Terminal at best price from our website or visit any of our showrooms.
