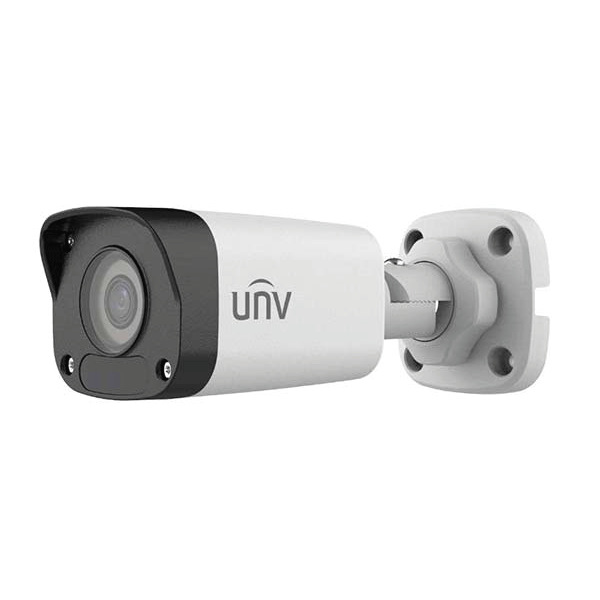

Uniview IPC2122LB-ASF40-EZG 2MP Mini IP Bullet Camera

2,650৳ 2,800৳
Product Highlights
  • Brand: Uniview
  • Model: IPC2122LB-ASF40-EZG
  • 2MP, 1/2.8"CMOS sensor
  • Ultra 265, H.265, H.264
  • Up to 30m (98ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)

In Stock

remove add
Camera
Image Sensor1/2.8", 2.0 megapixel, progressive scan, CMOS
Electronic Shutter Auto/Manual, 1 ~ 1/100000s
Min. IlluminationColour: 0.01Lux (F2.0, AGC ON)
0Lux with IR on
S/N Ratio >52dB
Illumination DistanceUp to 30m (98ft) IR range
Illuminator On/Off ControlAuto/Manual
Day & NightIR-cut filter with auto switch (ICR)
WDRDWDR
Digital DefogSupported
Digital DNR2D/3D DNR
Lens Type [email protected]
Angle of ViewAngle of View (H): 87.5°
Angle of View (V): 46.3°
Angle of View (O): 92.4°
Image & Video
Video Compression Ultra 265, H.265, H.264
Main Stream (S1)1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream (S2)D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
Region of Interest (ROI)Up to 8 areas
BLCSupported
HLCSupported
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Noise Reduction2D/3D DNR
Motion DetectionUp to 4 areas
Privacy MaskingUp to 4 areas
Network
Network Port10/100M Base-TX Ethernet
Network Protocols IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
APICompatible Integration
ClientEZStation
EZView
EZLive
Web BrowserPlug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Physical Specification
Power Supply DC 12V±25%, PoE (IEEE 802.3af)
Power ConsumptionPower consumption: Max 5.5W
Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F)
Operating Humidity≤95% RH (non-condensing)
Storage Temperature-30°C ~ 60°C (-22°F ~ 140°F)
Storage Humidity≤95% RH (non-condensing)
Material Metal + Plastic
Dimension161 × 63 ×62mm (6.4” × 2.5” × 2.4”)
Weight0.27kg (0.60lb)
ProtectionIngress Protection: IP67
Surge Protection: 4KV
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
Manufacture Warranty
Warranty1 Year

Uniview IPC2122LB-ASF40-EZG 2MP Mini IP Bullet Camera

The Uniview IPC2122LB-ASF40-EZG 2MP Mini IP Bullet Camera is a compact, high-performance security camera engineered for modern surveillance needs. Equipped with a 1/2.8” 2MP CMOS sensor, Ultra 265/H.265 compression, Smart IR, and IP67 weather protection, this camera delivers excellent day and night performance indoors and outdoors. Its powerful low-light capability, robust 3-axis adjustment, and PoE support make it ideal for homes, offices, retail stores, warehouses, showrooms, schools, and commercial security installations.

High-Quality 2MP Full HD Imaging

This Uniview mini bullet camera features a 2MP (1920×1080) progressive scan CMOS sensor that captures crisp, clear, and detailed surveillance footage. With support for 1080p at 30fps and optimized image processing, it ensures smooth recording and monitoring, making it suitable for both real-time viewing and evidence collection.

Ultra 265/H.265/H.264 Compression

The Ultra 265 and H.265 advanced compression technologies significantly reduce bandwidth and storage usage without compromising video quality. This allows users to record more days of footage on the same hard drive, making it a cost-effective CCTV solution for long-term security monitoring.

Smart IR with 30m Night Vision

With Smart IR technology and up to 30 meters (98 ft) of infrared night vision, the IPC2122LB-ASF40-EZG ensures sharp and evenly illuminated images even in complete darkness. The camera automatically adjusts IR intensity to prevent overexposure and enhance object visibility in low-light environments.

Wide Dynamic Range & Noise Reduction

Featuring DWDR and advanced 2D/3D DNR (Digital Noise Reduction), the camera delivers clear images even in challenging lighting conditions. Whether dealing with shadows, bright areas, or noisy nighttime scenes, this technology improves clarity and stability across all environments.

Weatherproof IP67 Outdoor Protection

Engineered with a robust metal-plastic body and IP67 ingress protection, this mini bullet camera withstands rain, dust, heat, and extreme weather conditions. It is dependable for both indoor and outdoor installations, operating reliably between -30°C to 60°C.

PoE Support for Easy Installation

Supporting Power over Ethernet (PoE, IEEE 802.3af), the camera simplifies installation by transmitting both power and data through a single Ethernet cable. This reduces wiring complexity and ensures faster setup for professional or DIY installations.

Flexible 3-Axis Adjustment

The Uniview IPC2122LB-ASF40-EZG offers full 3-axis adjustment—pan, tilt, and rotate—allowing installers to position the camera at the ideal angle for maximum coverage. This makes it highly adaptable for wall, ceiling, or custom mounting positions.

Advanced Image Features & Smart Controls

Equipped with intelligent image enhancements such as BLC, HLC, Smart IR, motion detection, ROI, privacy masks and more, the camera provides exceptional versatility and accuracy. Users can customize up to 4 privacy mask zones, 8 ROI areas, and 4 motion detection zones to refine monitoring according to security requirements.

Strong Software Integration

The camera supports Uniview’s EZStation, EZView, and EZLive platforms for seamless monitoring and playback across mobile phones, PCs, and surveillance systems. It also works with plug-in-free browsers like Chrome, Edge, and Firefox, making it modern, convenient, and easy to operate.

Buy Uniview IPC2122LB-ASF40-EZG 2MP IP Bullet Camera from Touch IT

Get the original Uniview IPC2122LB-ASF40-EZG 2MP Mini IP Bullet Camera from Touch IT, your reliable surveillance and security solutions partner. We provide expert installation, professional support, and the best value for Uniview CCTV cameras, Uniview 2MP IP cameras, UNV bullet cameras, and Uniview IP camera price in Bangladesh. Choose Touch IT to ensure high-quality, long-lasting, and secure IP camera performance for your home or business.

What is the price of Uniview IPC2122LB-ASF40-EZG 2MP IP Bullet Camera in Bangladesh?

The latest price of Uniview IPC2122LB-ASF40-EZG 2MP IP Bullet Camera in Bangladesh is 2,650৳. You can buy the Uniview IPC2122LB-ASF40-EZG 2MP IP Bullet Camera at best price from our website or visit any of our showrooms.
